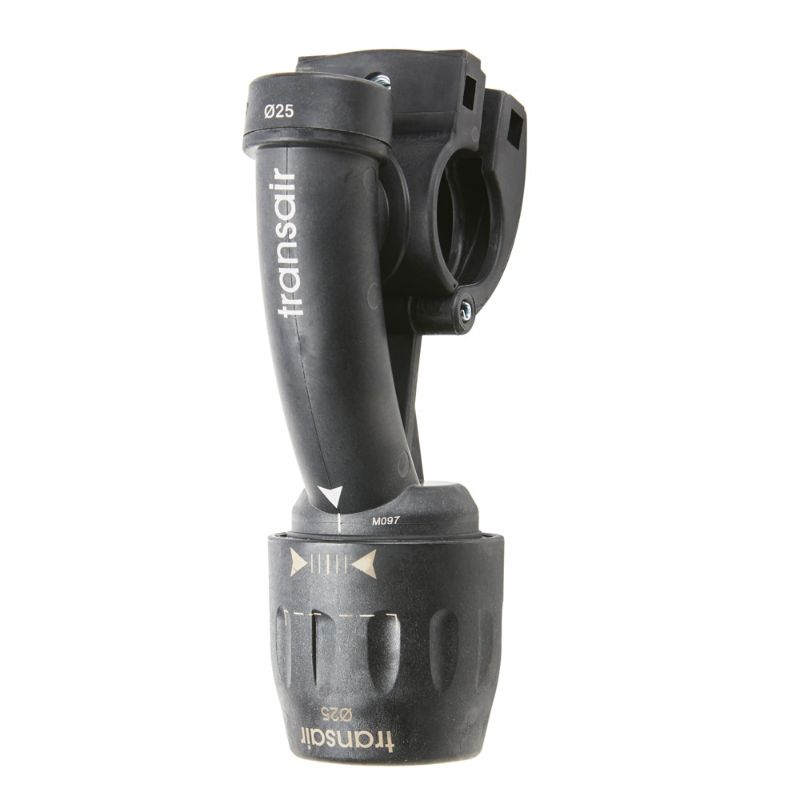

Parker 6662 25 17 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

AFP Availability:	Quote Required
Partner Available:	55 In Stock

Brand Parker

Part No. 6662 25 17

$39.86/each

Products specifications

Attribute name	Attribute value
Industry	General Industrial	Brand	Transair
Maximum Operating Pressure	232 psi	Weight	0.22 lb
Division	Low Pressure Connectors Europe Division	Assembly Time	0.07 Hours
Maximum Operating Temperature	185 °F	Technology	Fluid & Gas Handling
For Fluid Type	Air Compressed Air, Inert Gas, Vacuum	Assembly	Drop
Vacuum Pressure Rating	0.03 inch-Hg	Configuration	Pipe to Pipe
Connection 2 Size	1/2 inch	Connection 2 Type	Pipe
Body Material	Technical Polymer	Quantity per Box	10
Connection 1 Size	1 inch	Connection 1 Type	Pipe
Specifications Met	ISO 9001	Minimum Operating Temperature	-4 °F
Application	Industrial Gas	Shape	Swan Neck
Silicone Free	Yes	Product Type	Compressed Air Piping
Division	Low Pressure Connectors Europe Division	Product Style	Quick Assembly Bracket
Body Material	Technical Polymer	Connection 1 Size	1" (25 mm)
Connection 2 Size	1/2" (16.5 mm)	Connection 2 Type	Quick Assembly Bracket
