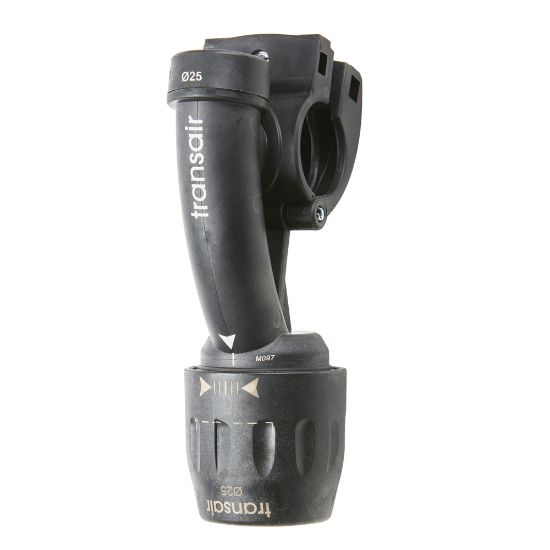

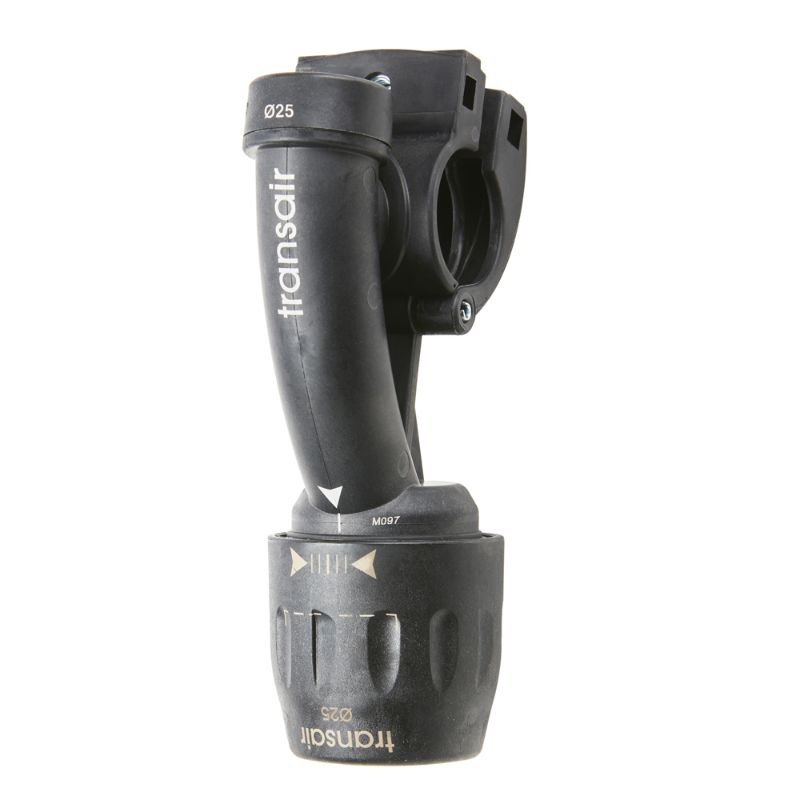

Parker 6662 25 00 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	119 In Stock

Brand Parker

Part No. 6662 25 00

$42.45

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Quantity per Box	10	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Application	In Plant Pneumatic	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division	Technology	Pneumatics
Configuration	Pipe to Pipe	Specifications Met	ASME B31.1 - 31.9
Maximum Operating Temperature	185 °F	Connection 1 Type	Pipe
Connection 2 Type	Pipe	Body Material	Technical Polymer
Connection 1 Size	25 mm	Connection 2 Size	25 mm
Shape	Swan Neck	Weight	0.124 lb
Assembly Time	0.07 Hours	Product Style	Quick Assembly Bracket
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par	Assembly	Drop
Silicone Free	Yes	Body Material	Technical Polymer
Connection 1 Size	1" (25 mm)	Connection 2 Size	1" (25 mm)
Connection 2 Type	Quick Assembly Bracket

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
