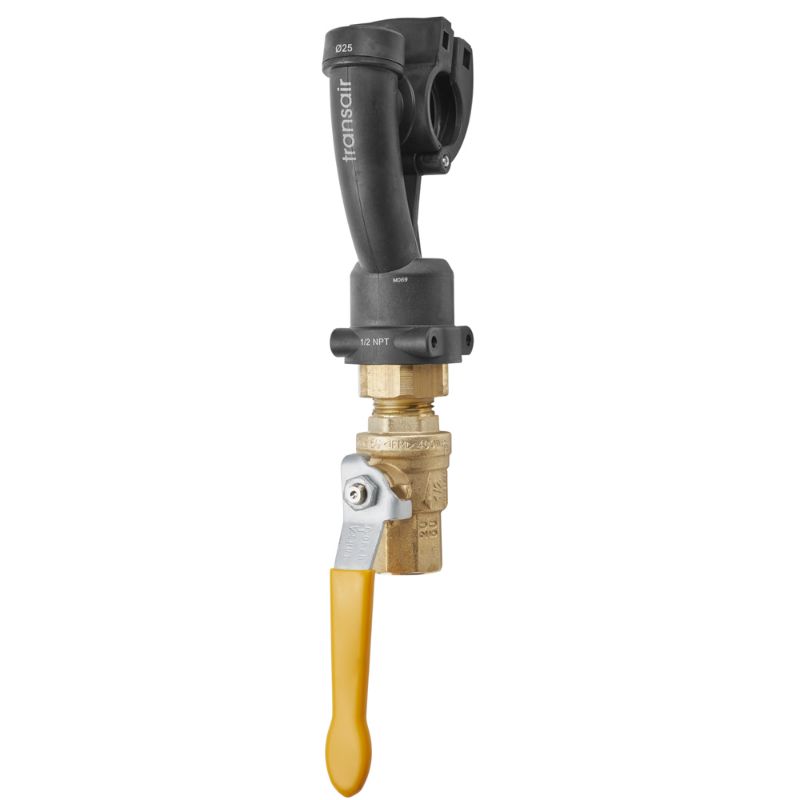

Parker 6668 25 22 - Transair® Drop Brackets for Aluminum Pipe

Name: Parker 6668 25 22 - Transair® Drop Brackets for Aluminum Pipe
SKU: 6668 25 22
Price: 72.05 USD
Availability: InStock

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

AFP Availability:

4 In Stock

Knoxville, TN

Partner Available:

13 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 6668 25 22

$72.05/each

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Division	Fluid System Connectors Division
Vacuum Pressure Rating	1.0 mbar	Configuration	Pipe to Port
Connection 2 Size	1/2 inch	Assembly	Drop
Quantity per Box	5	Connection 1 Size	1 inch
Assembly Time	0.05 Hours	Maximum Operating Temperature	85 °C
Technology	Pneumatics	Minimum Operating Temperature	-4 °F
Application	Industrial Gas	Silicone Free	Yes
Product Type	Compressed Air Piping	Division	Low Pressure Connectors Europe Division
Shape	Swan Neck	Connection 2 Type	NPT
Body Material	Technical Polymer	Product Style	Quick Assembly Bracket
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par	Industry	General Industrial
Brand	Parker	Weight	0.95 lb
Connection 1 Type	Pipe	Specifications Met	TUV
Connection 2 Size	1/2"	Body Material	Technical Polymer
Connection 1 Size	1" (25 mm)	Connection 2 Type	Quick Assembly Bracket w/ Ball Valve
