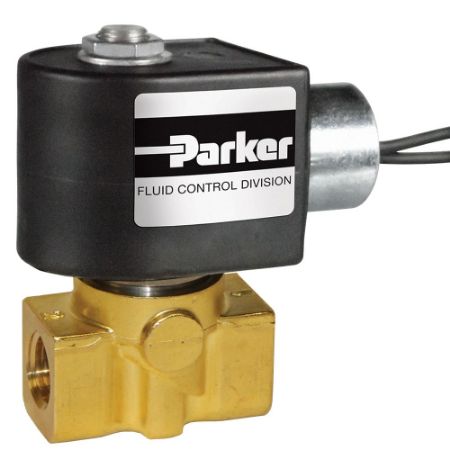

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 2-Way Normally Closed 3/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Port Size	Division	Media	Function	Coil Type	Port Type	Valve Type	Body Material	Input Voltage	Seal Material	Actuation Type	Orifice 1 Size	Orifice 2 Size	Product Series	Number of Ports	Power Consumption	Flow Coefficient 1	Flow Coefficient 2	Coil Specifications Met	Maximum Fluid Temperature	Minimum Fluid Temperature	Maximum Pressure Differential	Minimum Pressure Differential	Coil Type	Voltage (V)	Power (Watts)	Body Material	Seal Material	Flow Factor 1 (Cv)	Orifice 1 Size (inch)	Maximum Pressure Differential (psi)
06F20C2114BDF4C01	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	24/60	NBR	Direct Acting	7/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.72 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	16 Watt (AC)	BRASS	NBR	0.72	7/32	100 psi (AC)
06F20C2114BDF4C05	Quote Required	Quote Required	$188.38	EA	3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	7/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.72 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	16 Watt (AC)	BRASS	NBR	0.72	7/32	100 psi (AC)
06F20C2114BDF4C15	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	220/50 to 240/60	NBR	Direct Acting	7/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.72 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	16 Watt (AC)	BRASS	NBR	0.72	7/32	100 psi (AC)
06F20C2114BDFPH05	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	7/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.72 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	16 Watt (AC)	BRASS	NBR	0.72	7/32	100 psi (AC)
06F20C2118BDF4C01	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	24/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.85 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	16 Watt (AC)	BRASS	NBR	0.85	9/32	100 psi (AC)
06F20C2118BDF4C05	Quote Required	Quote Required	$187.53	EA	3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.85 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	16 Watt (AC)	BRASS	NBR	0.85	9/32	100 psi (AC)
06F20C2118BDF4C15	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	220/50 to 240/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.85 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	16 Watt (AC)	BRASS	NBR	0.85	9/32	100 psi (AC)
06F20C2118BDFPH05	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.85 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	16 Watt (AC)	BRASS	NBR	0.85	9/32	100 psi (AC)
06F20C2118BDFPH15	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	220/50 to 240/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	16 W (AC)	0.85 Cv	n/a	Class F	200 °F	0 °F	100 psi (AC)	0 psi	DIN Form A, Class F	220/50-240/60	16 Watt (AC)	BRASS	NBR	0.85	9/32	100 psi (AC)
06F20C2120AAF4C01	Quote Required	Quote Required	TBD		3/8	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	24/60	NBR	Direct Acting	5/16	n/a	Gold Ring Series	2	6 W (AC)	1.1	n/a	Class F	180	0	15 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	6 Watt (AC)	BRASS	NBR	1.1	5/16	15 psi (AC)
06F20C2120AAF4C05	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	5/16 inch	n/a	Gold Ring Series	2	6 W (AC)	1.1 Cv	n/a	Class F	180 °F	0 °F	15 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	6 Watt (AC)	BRASS	NBR	1.1	5/16	15 psi (AC)
06F20C2120AAF4C15	Quote Required	Quote Required	TBD		3/8	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	220/50 to 240/60	NBR	Direct Acting	5/16	n/a	Gold Ring Series	2	6 W (AC)	1.1	n/a	Class F	180	0	15 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	6 Watt (AC)	BRASS	NBR	1.1	5/16	15 psi (AC)
06F20C2120AAFPH05	Quote Required	Quote Required	$189.57	EA	3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	110/50-120/60	NBR	Direct Acting	5/16 inch	n/a	Gold Ring Series	2	6 W (AC)	1.1 Cv	n/a	Class F	180 °F	0 °F	15 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	6 Watt (AC)	BRASS	NBR	1.1	5/16	15 psi (AC)
06F22C2140ADF4C15	Quote Required	Quote Required	TBD		3/8	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	220/50 to 240/60	NBR	Pilot Operated	5/8	n/a	Gold Ring Series	2	16 W (AC)	3	n/a	Class F	175	0	300 psi (AC)	5	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	16 Watt (AC)	BRASS	NBR	3	5/8	300 psi (AC)
06F23C6140ACFPH05	Quote Required	Quote Required	TBD		3/8	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Stainless Steel 316	110/50-120/60	NBR	Hung Diaphragm	5/8	n/a	Gold Ring Series	2	11 W (AC)	3	n/a	Class F	180	0	150 psi (AC)	0	DIN Form A, Class F	110/50-120/60	11 Watt (AC)	316 Stainless Casting	NBR	3	5/8	150 psi (AC)
06F25C2122CAF4C01	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	Liquids and Gases	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	24/60	NBR	Diaphragm	11/32 inch	n/a	Gold Ring Series	2	6 W (AC)	1.2 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	6 Watt (AC)	BRASS	NBR	1.2	11/32	300 psi (AC)
06F25C2122CAF4C05	Quote Required	Quote Required	$208.79	EA	3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	110/50-120/60	NBR	Pivoted Edge	11/32 inch	n/a	Gold Ring Series	2	6 W (AC)	1.2 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	6 Watt (AC)	BRASS	NBR	1.2	11/32	300 psi (AC)
06F25C2122CAF4C15	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	NPT	2-Way	Brass	220/50 to 240/60	NBR	Diaphragm	11/32 inch	n/a	Gold Ring Series	2	6 W (AC)	1.2 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	6 Watt (AC)	BRASS	NBR	1.2	11/32	300 psi (AC)
06F25C2122CAFPH01	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	24/60	NBR	Diaphragm	11/32 inch	n/a	Gold Ring Series	2	6 W (AC)	1.2 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	5 psi	DIN Form A, Class F	24/60	6 Watt (AC)	BRASS	NBR	1.2	11/32	300 psi (AC)
06F25C2122CAFPH05	Quote Required	Quote Required	TBD		3/8 inch	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	DIN Form A, Class F	NPT	2-Way	Brass	110/50-120/60	NBR	Pivoted Edge	11/32 inch	n/a	Gold Ring Series	2	6 W (AC)	1.2 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	5 psi	DIN Form A, Class F	110/50-120/60	6 Watt (AC)	BRASS	NBR	1.2	11/32	300 psi (AC)
