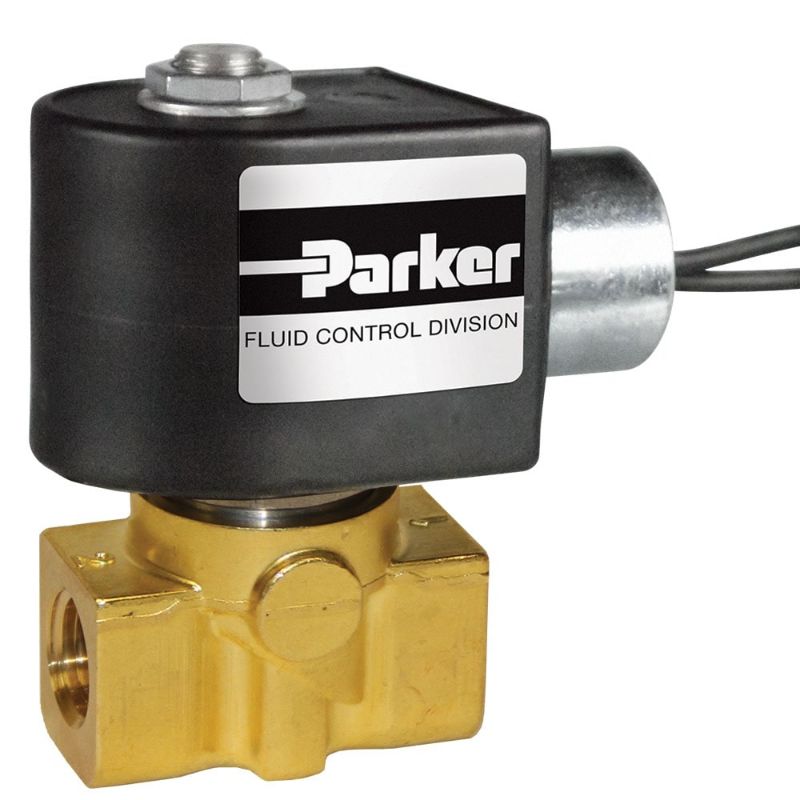

Parker 73212BN3SN00N0H111P3 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73212BN3SN00N0H111P3

$396.09

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	Liquids and Gases	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	110/50-120/60
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Minimum Fluid Temperature	0 °F	Maximum Pressure Differential	300 psi (AC)
Port Size	3/8 inch	Minimum Pressure Differential	5 psi
Maximum Fluid Temperature	185 °F	Power Consumption	10 W (AC)
Actuation Type	Mechanical	Product Series	7000 Series
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	Orifice 1 Size	7/16 inch
Coil Specifications Met	NEMA 7	Flow Coefficient 1	2.4 Cv
Body Material	BRASS	Voltage (V)	110/50-120/60
Seal Material	NBR	Maximum Pressure Differential (psi)	300 psi (AC)
Power (Watts)	10 Watt (AC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Orifice 1 Size (inch)	7/16	Flow Factor 1 (Cv)	2.4
