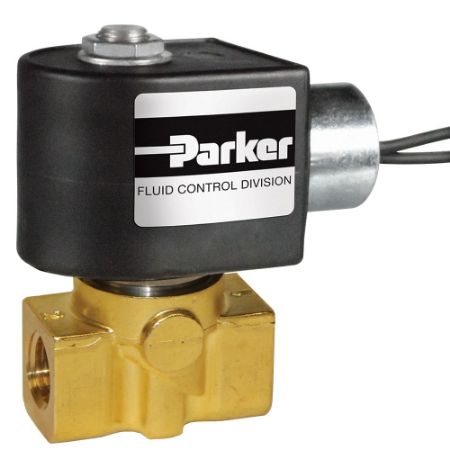

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 2-Way Normally Closed 3/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Input Voltage | Body Material | Media | Number of Ports | Minimum Pressure Differential | Port Size | Coil Specifications Met | Port Type | Maximum Fluid Temperature | Actuation Type | Maximum Pressure Differential | Orifice 1 Size | Flow Coefficient 1 | Flow Coefficient 2 | Orifice 2 Size | Product Series | Power Consumption | Seal Material | Coil Type | Division | Function | Valve Type | Minimum Fluid Temperature | Coil Type | Voltage (V) | Power (Watts) | Body Material | Seal Material | Flow Factor 1 (Cv) | Orifice 1 Size (inch) | Maximum Pressure Differential (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06F20C2114BDF4C05 | Quote Required | $193.77/each | EA | 110/50-120/60 | Brass | Liquids and Gases | 2 | 0 psi | 3/8 inch | Class F | NPT | 200 °F | Direct Acting | 100 psi (AC) | 7/32 inch | 0.72 Cv | n/a | n/a | Gold Ring Series | 16 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 16 Watt (AC) | BRASS | NBR | 0.72 | 7/32 | 100 psi (AC) | ||
| 06F20C2118BDF4C05 | Quote Required | $195.50/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | Class F | NPT | 200 °F | Direct Acting | 100 psi (AC) | 9/32 inch | 0.85 Cv | n/a | n/a | Gold Ring Series | 16 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 16 Watt (AC) | BRASS | NBR | 0.85 | 9/32 | 100 psi (AC) | ||
| 06F20C2120AAFPH05 | Quote Required | $194.56/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | Class F | NPT | 180 °F | Direct Acting | 15 psi (AC) | 5/16 inch | 1.1 Cv | n/a | n/a | Gold Ring Series | 6 W (AC) | NBR | DIN Form A, Class F | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | DIN Form A, Class F | 110/50-120/60 | 6 Watt (AC) | BRASS | NBR | 1.1 | 5/16 | 15 psi (AC) | ||
| 06F25C2122CAF4C05 | Quote Required | $219.54/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 5 psi | 3/8 inch | Class F | NPT | 180 °F | Pivoted Edge | 300 psi (AC) | 11/32 inch | 1.2 Cv | n/a | n/a | Gold Ring Series | 6 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 6 Watt (AC) | BRASS | NBR | 1.2 | 11/32 | 300 psi (AC) | ||
| 71215SN33NHPN0C111P3 | Quote Required | $180.40/each | EA | 110/50-120/60 | Stainless Steel 430 F | General Purpose for Air | 2 | 5 psi | 3/8 inch | NEMA 4X | NPT | 185 °F | Direct Acting | 11 psi (AC) | 7/16 inch | 2 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 10 Watt (AC) | 430F Stainless | NBR | 2 | 7/16 | 11 psi (AC) | ||
| 7121KBN3UV00N0D100C2 | Quote Required | $171.62/each | EA | 24.0 VDC | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | Class F | NPT | 185 °F | Direct Acting | 20 psi (DC) | 7/16 inch | 0.83 Cv | n/a | n/a | 7000 Series | 10 W (DC) | FKM | DIN Form A, Class F | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | DIN Form A, Class F | 24 VDC | 10 Watt (DC) | BRASS | FKM | 0.83 | 7/16 | 20 psi (DC) | ||
| 72218BN3TN00N0C111P3 | Quote Required | $310.33/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | NEMA 4X | NPT | 185 °F | Direct Lift | 100 psi (AC) | 7/16 inch | 3 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 3 | 7/16 | 100 psi (AC) | ||
| 7221GBN3VN00N0D100P3 | Quote Required | $212.22/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | Class F | NPT | 185 °F | Direct Lift | 230 psi (AC) | 7/16 inch | 4.4 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | DIN Form A, Class F | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | DIN Form A, Class F | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 4.4 | 7/16 | 230 psi (AC) | ||
| 73212BN3SN00N0C111C2 | Quote Required | $338.86/each | EA | 24.0 VDC | Brass | General Purpose for Air | 2 | 5 psi | 3/8 inch | NEMA 4X | NPT | 185 °F | Mechanical | 300 psi (DC) | 7/16 inch | 2.4 Cv | n/a | n/a | 7000 Series | 10 W (DC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | 10 Watt (DC) | BRASS | NBR | 2.4 | 7/16 | 300 psi (DC) | ||
| 73212BN3SN00N0C111P3 | Quote Required | 3 In Stock | $339.04/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 5 psi | 3/8 inch | NEMA 4X | NPT | 185 °F | Mechanical | 300 psi (AC) | 7/16 inch | 2.4 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 2.4 | 7/16 | 300 psi (AC) | |
| 73212BN3SN00N0H111P3 | Quote Required | $416.87/each | EA | 110/50-120/60 | Brass | Liquids and Gases | 2 | 5 psi | 3/8 inch | NEMA 7 | NPT | 185 °F | Mechanical | 300 psi (AC) | 7/16 inch | 2.4 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 2.4 | 7/16 | 300 psi (AC) | ||
| 73218BN3TN00N0C111P3 | Quote Required | 1 Limited Stock | $229.41/each | EA | 110/50-120/60 | Brass | Liquids and Gases | 2 | 5 psi | 3/8 inch | NEMA 4X | NPT | 185 °F | Manual | 150 psi (AC) | 7/16 inch | 3 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 3 | 7/16 | 150 psi (AC) | |
| 73218BN3TN00N0H111C2 | Quote Required | $307.07/each | EA | 24.0 VDC | Brass | Liquids and Gases | 2 | 5 psi | 3/8 inch | NEMA 7 | NPT | 185 °F | Mechanical | 150 psi (DC) | 7/16 inch | 3 Cv | n/a | n/a | 7000 Series | 10 W (DC) | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | 10 Watt (DC) | BRASS | NBR | 3 | 7/16 | 150 psi (DC) | ||
| 7321KBN3SN00N0D100P3 | Quote Required | 1 Limited Stock | $149.45/each | EA | 110/50-120/60 | Brass | General Purpose for Air | 2 | 0 psi | 3/8 inch | Class F | NPT | 185 °F | Mechanical | 150 psi (AC) | 7/16 inch | 2.5 Cv | n/a | n/a | 7000 Series | 10 W (AC) | NBR | DIN Form A, Class F | Fluid Control Division | Normally Closed (NC) | 2-Way | 0 °F | DIN Form A, Class F | 110/50-120/60 | 10 Watt (AC) | BRASS | NBR | 2.5 | 7/16 | 150 psi (AC) |
