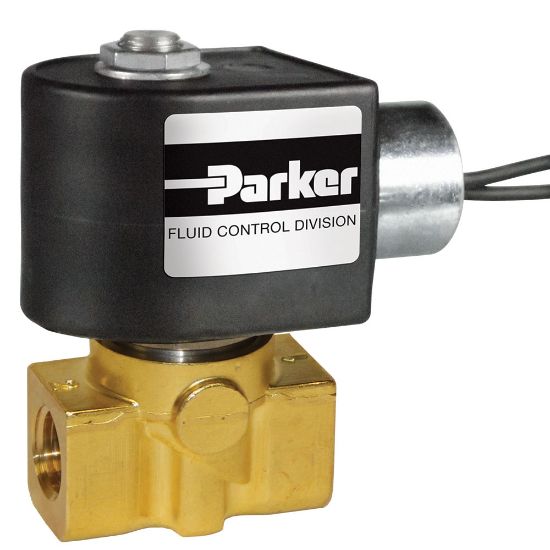

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 06F20C2120AAFPH05 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F20C2120AAFPH05

$189.57

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	3/8 inch
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	DIN Form A, Class F
Port Type	NPT	Valve Type	2-Way
Body Material	Brass	Input Voltage	110/50-120/60
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 1 Size	5/16 inch	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Number of Ports	2
Power Consumption	6 W (AC)	Flow Coefficient 1	1.1 Cv
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Maximum Fluid Temperature	180 °F	Minimum Fluid Temperature	0 °F
Maximum Pressure Differential	15 psi (AC)	Minimum Pressure Differential	0 psi
Coil Type	DIN Form A, Class F	Voltage (V)	110/50-120/60
Power (Watts)	6 Watt (AC)	Body Material	BRASS
Seal Material	NBR	Flow Factor 1 (Cv)	1.1
Orifice 1 Size (inch)	5/16	Maximum Pressure Differential (psi)	15 psi (AC)

Product resources

Literature and Reference Materials

FCD General Purpose 2-Way Valves (PDF)
