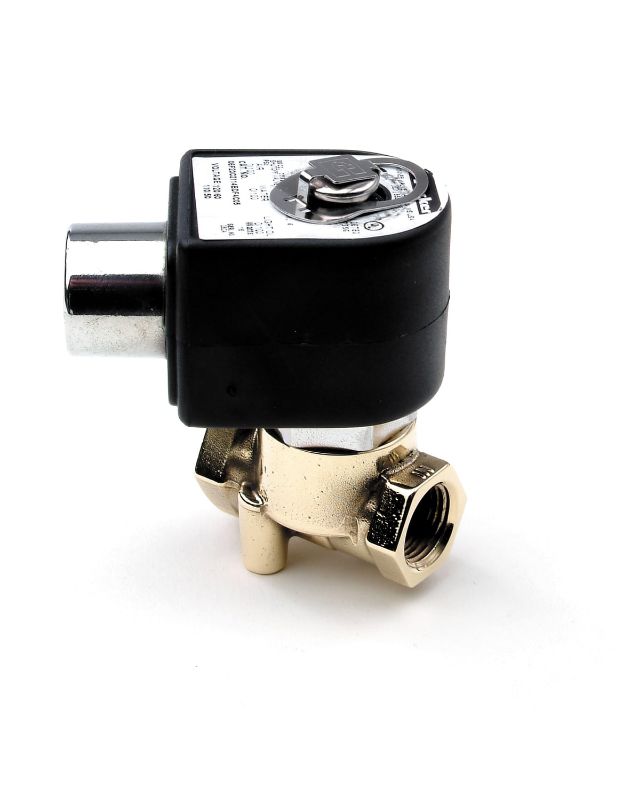

Parker 06F20C2118BDF4C05 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F20C2118BDF4C05

$195.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Orifice 1 Size	9/32 inch
Body Material	Brass	Minimum Pressure Differential	0 psi
Input Voltage	110/50-120/60	Actuation Type	Direct Acting
Seal Material	NBR	Power Consumption	16 W (AC)
Flow Coefficient 1	0.85 Cv	Maximum Fluid Temperature	200 °F
Maximum Pressure Differential	100 psi (AC)	Port Type	NPT
Minimum Fluid Temperature	0 °F	Function	Normally Closed (NC)
Valve Type	2-Way	Product Series	Gold Ring Series
Orifice 2 Size	n/a	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Port Size	3/8 inch
Media	General Purpose for Air	Number of Ports	2
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Division	Fluid Control Division
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	110/50-120/60
Power (Watts)	16 Watt (AC)	Body Material	BRASS
Seal Material	NBR	Flow Factor 1 (Cv)	0.85
Orifice 1 Size (inch)	9/32	Maximum Pressure Differential (psi)	100 psi (AC)
