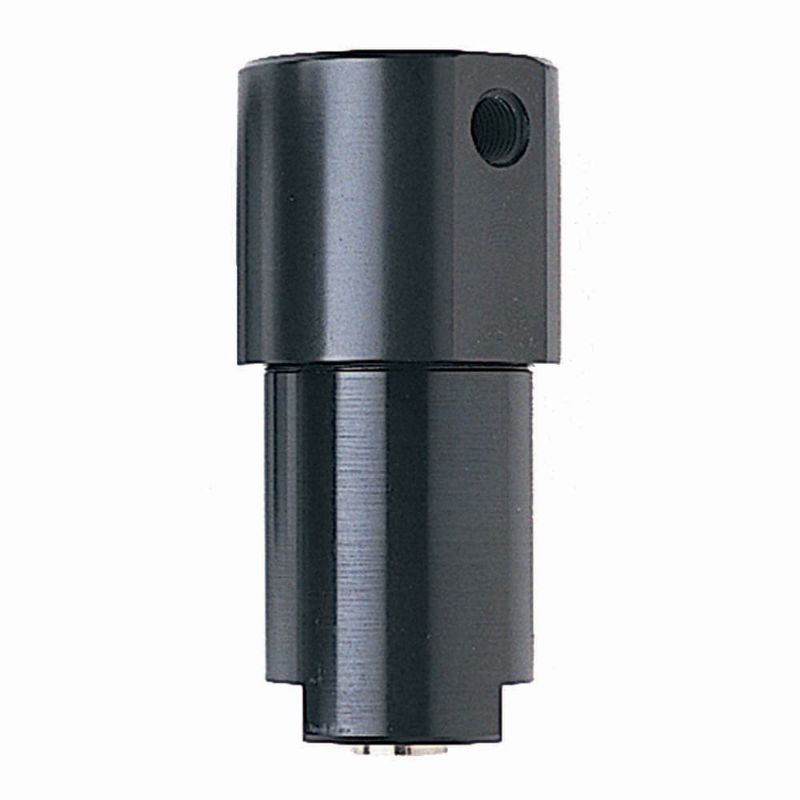

Parker FFC-112 SAE-10 - FFC-110 Compressed Air & Gas Filters - Up To 800 PSIG

Finite's inline compressed natural gas FFC-112 filter Series features a light weight robust construction and is is designed to protect critical engine components from contaminants in CNG fuel.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-112 SAE-10

$336.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	CNG onboard
Height	121 to 215 mm depending on configuration.	Compatible Element	FFC-112 Replacement Element Series
Filter Type	Coalescer	Weight	0.68 to 0.9 kg depending on configuration.
Optional Accessories	Mounting Bracket Kit (MB-2S)	Head Material	Aluminum
Maximum Operating Temperature	221 °F	Minimum Operating Temperature	-40 °F
Drain Port Size	SAE 6 Drain Plug	Division	Industrial Gas Filtration and Generation Division
Bowl Type	Aluminum	Specifications Met	ECE R110
Width	2.28 inch	Seal Material	Fluorocarbon
Plating Type	Anodized	Maximum Operating Pressure	248 barg
Brand	Finite	Maximum Flow Rate (cfm)	473 at 3600 PSIG
Bowl Type	Standard	Port Connection (inch)	3/8"- SAE-6
Filter Rating (%)	99.50%	Micron Rating (µm)	1
Thread Type	SAE-6
