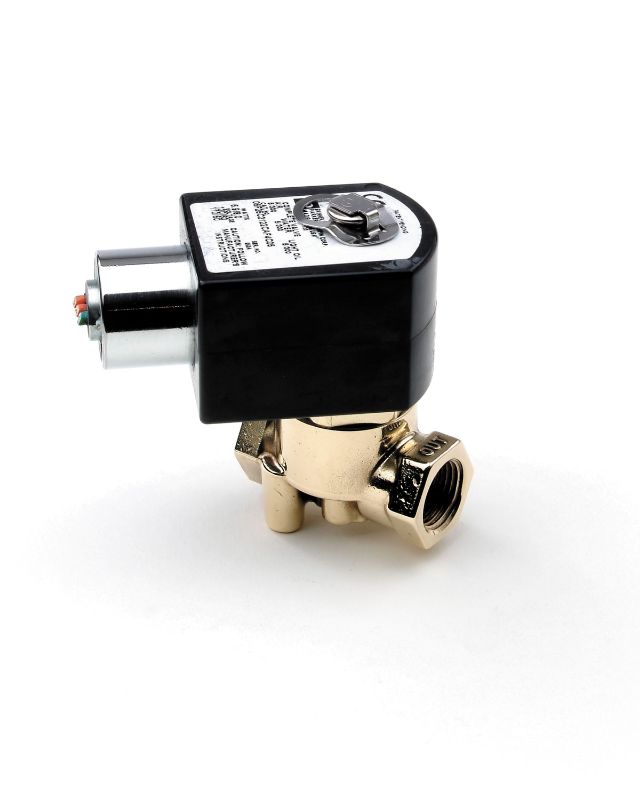

Parker 06F25C2122CAF4C05 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F25C2122CAF4C05

$219.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Valve Type	2-Way	Flow Coefficient 2	n/a
Function	Normally Closed (NC)	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Minimum Fluid Temperature	0 °F
Media	General Purpose for Air	Input Voltage	110/50-120/60
Minimum Pressure Differential	5 psi	Port Size	3/8 inch
Coil Specifications Met	Class F	Number of Ports	2
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Orifice 1 Size	11/32 inch
Flow Coefficient 1	1.2 Cv	Body Material	Brass
Seal Material	NBR	Power Consumption	6 W (AC)
Maximum Pressure Differential	300 psi (AC)	Port Type	NPT
Maximum Fluid Temperature	180 °F	Actuation Type	Pivoted Edge
Body Material	BRASS	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	6 Watt (AC)
Seal Material	NBR	Flow Factor 1 (Cv)	1.2
Orifice 1 Size (inch)	11/32	Maximum Pressure Differential (psi)	300 psi (AC)
