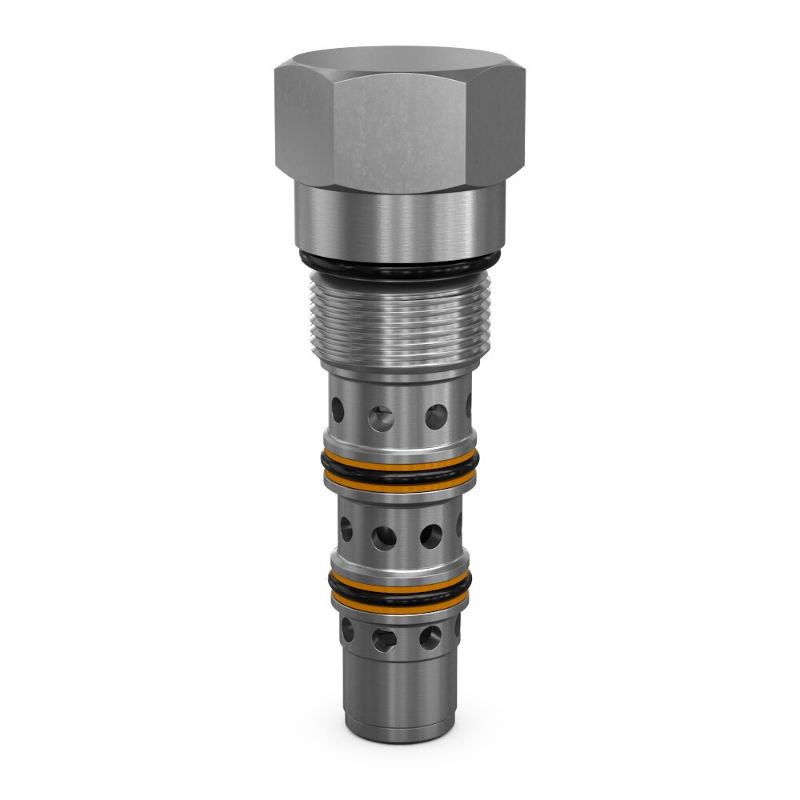

Parker K04F3-10.0N - Cartridge Spool Type Shuttle Valves with All Ports Open

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).
AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. K04F3-10.0N
$253.00/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
In closed loop hydrostatic transmission systems, it is often necessary to bleed off some of the oil from the circuit and replace it with cool, clean oil from a charge replenishing pump. The hot oil is typically routed through a filter and cooler before returning to the reservoir. System designers use a hot oil shuttle valve to achieve this. Higher pressure fluid from the loop causes the shuttle valve to shift allowing oil from the low pressure side of the loop to be ported out the common port. These valves are usually used in conjunction with a relief valve. Parker’s K04F3 has an open center position with metering orifices to control flow. Capable of 15 gpm and up to 6000 psi, the K04F3 valve is available with 5 switching pressures.
Products specifications
Attribute nameAttribute value
UOMEAConfiguration3-way Spool Type
FunctionShuttleCavity SizeC10-4
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Operating Temperature+250 °F
Switching Pressure145 psiLeak RateN/A
Body MaterialN/AStandard Flow Rate Setting55 L/min
Maximum Flow Rate100 L/minOperation TypeSpring Centered, All Parts Open
Minimum Operating Temperature-34 °CDivisionMobile Hydraulic Systems Division Europe
Operating Temperature-30 to +250 °FFlow Rate100 L/min
Installation Torque50 NmActuation TypePressure Sensing
Weight0.17 kgSeal MaterialNitrile
Valve MaterialAll parts steel. All operating parts hardened steelMaximum Operating Pressure6000 psi
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Maximum Inlet Pressure Rating420 bar
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Switching Pressure145 PSI, 10 BAR
Seal MaterialNitrileFlow Rate26 GAL/MIN, 100 L/MIN
