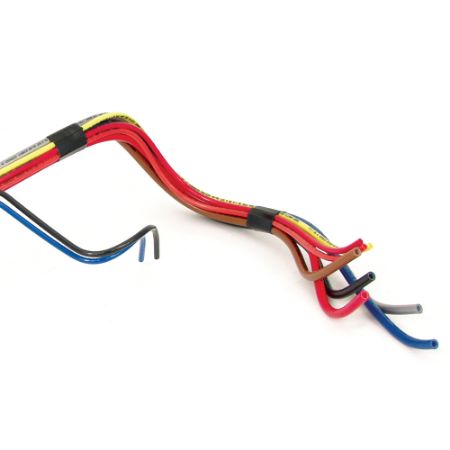

Nylon Air Brake Tubing
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Recognized as the global leader in air brake tubing, Parker develops brake system connections that maintain a basically fixed relationship between couplings during vehicle operation. The tubing is made from nylon and is available in more than ten colors for quick identification of lines. In addition, air brake tubing can be manufactured and prepared in pre-cut lengths, harnesses and preformed bundles that can reduce installation times by more than 70%. In tractor, trailer and other mobile air brake applications, time studies show an average chassis harness installation took 4 employees about 40 minutes to complete. However, with a Parflex preformed harness, installation time dropped to 10 minutes and only 1 employee was required to complete the installation. Based on labor rates of $30/hr, customers saved over $75 an hour and 150 production minutes. With reduced manufacturing and labor costs, increased dimensional stability, and excellent UV stability, Parflex Air Brake Tubing is the optimal solution for air brake applications in expanding transportation markets.
Parflex makes enough air brake tubing, also called DOT Tubing, in one year to circle the globe.
Markets:
• Transportation
• Military
• RV & Bus
Features:
• 100% pressure tested
• Excellent UV stability for extended tubing life
• Abrasion resistant for added protection
• Kink resistant, allowing for less downtime due to kinking failure
• Available in more than ten colors for quick identification of lines
• Reduced manufacturing and labor costs due to harness and preformed bundle options
• Tubing maintains extended dimensional integrity and stability for durability and increased tubing life
Applications:
• Air brake lines
Technical Specifications:
• Material:
Type A - Single-wall extruded Nylon (polyamide)
Type B - Nylon (polyamide) core, fiber reinforcement, Nylon (polyamide) cover/sheath
• Working and burst pressures rated at 73°F (23°C)
• The wall thickness is for reference only
• Packaged on reels, some sizes available in 100 ft. boxes
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Product Type | Cover Material | Specifications Met | Minimum Bend Radius | Application | Media | Size | Minimum Burst Pressure | Compatible Fitting | Tube Inside Diameter | Cover Color | Maximum Operating Temperature | Division | Tube Outside Diameter | Weight | Tube Material | Color | Maximum Operating Pressure | Tube O.D. (inch) | Color | Standard Pack Qty (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1120-10B-BLK-250 | 1343 In Stock | 17037 In Stock | $3.81/foot | FT | -40 °C | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 2-1/2 inch | Air Brake | Air | -10 | 900 psi | Prestomatic | 0.441 inch | Black | 93 °C | Parflex Division | 0.625 inch | 0.07 lb/ft | Polyamide (PA) Fiber Reinforcement | Black | 150 psi | 5/8 | Black | 250 | |
| 1120-10B-BLU-250 | Quote Required | 496 In Stock | $3.85/foot | FT | -40 °C | Reinforced | Polyamide (PA) | SAE J844 | 2-1/2 inch | Transportation | Air | -10 | 900 psi | PTC | 11.2 mm | Blue | 93 °C | Parflex Division | 15.9 mm | 0.07 lb/ft | Polyamide (PA) Fiber Reinforcement | Blue | 150 psi | 5/8 | Blue | 250 | |
| 1120-10B-GRN-250 | Quote Required | 9113 In Stock | $3.85/foot | FT | -40 °F | Reinforced | Polyamide (PA) | SAE J844 | 63.5 mm | Air Brake | Air | -10 | 62.1 bar | SAE Cartridges | 0.441 inch | Green | 200 °F | Parflex Division | 0.625 inch | 0.104 kg/m | Polyamide (PA) Fiber Reinforcement | Green | 10.3 bar | 5/8 | Green | 250 | |
| 1120-10B-ORG-250 | Quote Required | TBD | FT | -40 °F | Reinforced | Polyamide (PA) | SAE J844 | 63.5 mm | Air Brake | Air | -10 | 62.1 bar | Prestomatic | 0.441 inch | Orange | 93 °C | Parflex Division | 15.9 mm | 0.104 kg/m | Polyamide (PA) Fiber Reinforcement | Orange | 150 psi | 5/8 | Orange | 250 | ||
| 1120-10B-RED-250 | Quote Required | 2480 In Stock | $3.85/foot | FT | -40 °F | Reinforced | Polyamide (PA) | SAE J844 | 2-1/2 inch | Air Brake | Air | -10 | 62.1 bar | NTA® | 11.2 mm | Red | 200 °F | Parflex Division | 0.625 inch | 0.07 lb/ft | Polyamide (PA) Fiber Reinforcement | Red | 10.3 bar | 5/8 | Red | 250 | |
| 1120-12B-BLK-250 | 1472 In Stock | 8356 In Stock | $5.16/foot | FT | -40 °C | Reinforced | Polyamide (PA) | SAE J844 | 3 inch | Transportation | Air | -12 | 800 psi | Air Brake | 14.4 mm | Black | 200 °F | Parflex Division | 0.75 inch | 0.086 lb/ft | Polyamide (PA) Fiber Reinforcement | Black | 10.3 bar | 3/4 | Black | 250 | |
| 1120-4A-BLK-100 | 2448 In Stock | 1439 In Stock | $1.24/foot | FT | -40 °F | n/a | SAE J844 | 25.4 mm | Air Brake | Air | -4 | 82.7 bar | PTC | 0.17 inch | n/a | 200 °F | Parflex Division | 6.4 mm | 0.012 lb/ft | Polyamide (PA) | Black | 10.3 bar | 1/4 | Black | 100 ft box | ||
| 1120-4A-BLK-1000 | 1046 In Stock | 85613 In Stock | $0.94/foot | FT | -40 °F | n/a | D.O.T. 49 CFR 571.106 | 1 inch | Transportation | Air | -4 | 82.7 bar | Prestomatic | 0.17 inch | n/a | 93 °C | Parflex Division | 0.25 inch | 0.012 lb/ft | Polyamide (PA) | Black | 150 psi | 1/4 | Black | 1000 | ||
| 1120-4A-BLU-1000 | Quote Required | 27766 In Stock | $0.97/foot | FT | -40 °F | n/a | SAE J844 | 25.4 mm | Transportation | Air | -4 | 1200 psi | Air Brake | 4.3 mm | n/a | 200 °F | Parflex Division | 0.25 inch | 0.018 kg/m | Polyamide (PA) | Blue | 10.3 bar | 1/4 | Blue | 1000 | ||
| 1120-4A-GRN-1000 | Quote Required | 30893 In Stock | $0.98/foot | FT | -40 °F | n/a | D.O.T. 49 CFR 571.106 | 1 inch | Transportation | Air | -4 | 82.7 bar | Air Brake | 0.17 inch | n/a | 93 °C | Parflex Division | 0.25 inch | 0.018 kg/m | Polyamide (PA) | Green | 10.3 bar | 1/4 | Green | 1000 | ||
| 1120-4A-ORG-1000 | Quote Required | 13787 In Stock | $0.98/foot | FT | -40 °F | n/a | D.O.T. 49 CFR 571.106 | 25.4 mm | Air Brake | Air | -4 | 82.7 bar | NTA® | 0.17 inch | n/a | 93 °C | Parflex Division | 0.25 inch | 0.018 kg/m | Polyamide (PA) | Orange | 10.3 bar | 1/4 | Orange | 1000 | ||
| 1120-4A-RED-1000 | Quote Required | 8183 In Stock | $0.97/foot | FT | -40 °F | n/a | SAE J844 | 1 inch | Air Brake | Air | -4 | 82.7 bar | PTC | 0.17 inch | n/a | 93 °C | Parflex Division | 0.25 inch | 0.018 kg/m | Polyamide (PA) | Red | 10.3 bar | 1/4 | Red | 1000 | ||
| 1120-4A-YEL-1000 | Quote Required | 22112 In Stock | $0.98/foot | FT | -40 °C | n/a | SAE J844 | 1 inch | Air Brake | Air | -4 | 82.7 bar | SAE Cartridges | 0.17 inch | n/a | 93 °C | Parflex Division | 6.4 mm | 0.012 lb/ft | Polyamide (PA) | Yellow | 10.3 bar | 1/4 | Yellow | 1000 | ||
| 1120-6B-BLK-100 | 1602 In Stock | 7444 In Stock | $1.71/foot | FT | -40 °C | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 1-1/2 inch | Air Brake | Air | -6 | 1400 psi | Air Brake | 0.251 inch | Black | 200 °F | Parflex Division | 9.5 mm | 0.027 lb/ft | Polyamide (PA) Fiber Reinforcement | Black | 150 psi | 3/8 | Black | 100 ft box | |
| 1120-6B-BLK-500 | 576 In Stock | 59622 In Stock | $1.63/foot | FT | -40 °C | Reinforced | Polyamide (PA) | SAE J844 | 38.1 mm | Transportation | Air | -6 | 1400 psi | Prestomatic | 0.251 inch | Black | 200 °F | Parflex Division | 9.5 mm | 0.027 lb/ft | Polyamide (PA) Fiber Reinforcement | Black | 150 psi | 3/8 | Black | 500 | |
| 1120-6B-BLU-500 | Quote Required | 15482 In Stock | $1.63/foot | FT | -40 °C | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 38.1 mm | Transportation | Air | -6 | 96.5 bar | Air Brake | 6.4 mm | Blue | 200 °F | Parflex Division | 9.5 mm | 0.04 kg/m | Polyamide (PA) Fiber Reinforcement | Blue | 150 psi | 3/8 | Blue | 500 | |
| 1120-6B-GRN-500 | Quote Required | 12234 In Stock | $1.63/foot | FT | -40 °C | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 1-1/2 inch | Transportation | Air | -6 | 96.5 bar | Air Brake | 6.4 mm | Green | 200 °F | Parflex Division | 9.5 mm | 0.027 lb/ft | Polyamide (PA) Fiber Reinforcement | Green | 10.3 bar | 3/8 | Green | 500 | |
| 1120-6B-ORG-500 | Quote Required | 10751 In Stock | $1.74/foot | FT | -40 °F | Reinforced | Polyamide (PA) | SAE J844 | 1-1/2 inch | Transportation | Air | -6 | 96.5 bar | SAE Cartridges | 6.4 mm | Orange | 93 °C | Parflex Division | 0.375 inch | 0.04 kg/m | Polyamide (PA) Fiber Reinforcement | Orange | 10.3 bar | 3/8 | Orange | 500 | |
| 1120-6B-RED-500 | Quote Required | 13083 In Stock | $1.63/foot | FT | -40 °C | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 38.1 mm | Air Brake | Air | -6 | 1400 psi | PTC | 0.251 inch | Red | 93 °C | Parflex Division | 0.375 inch | 0.04 kg/m | Polyamide (PA) Fiber Reinforcement | Red | 10.3 bar | 3/8 | Red | 500 | |
| 1120-6B-YEL-500 | Quote Required | 14737 In Stock | $1.74/foot | FT | -40 °F | Reinforced | Polyamide (PA) | D.O.T. 49 CFR 571.106 | 1-1/2 inch | Air Brake | Air | -6 | 96.5 bar | Air Brake | 0.251 inch | Yellow | 93 °C | Parflex Division | 0.375 inch | 0.027 lb/ft | Polyamide (PA) Fiber Reinforcement | Yellow | 150 psi | 3/8 | Yellow | 500 |
