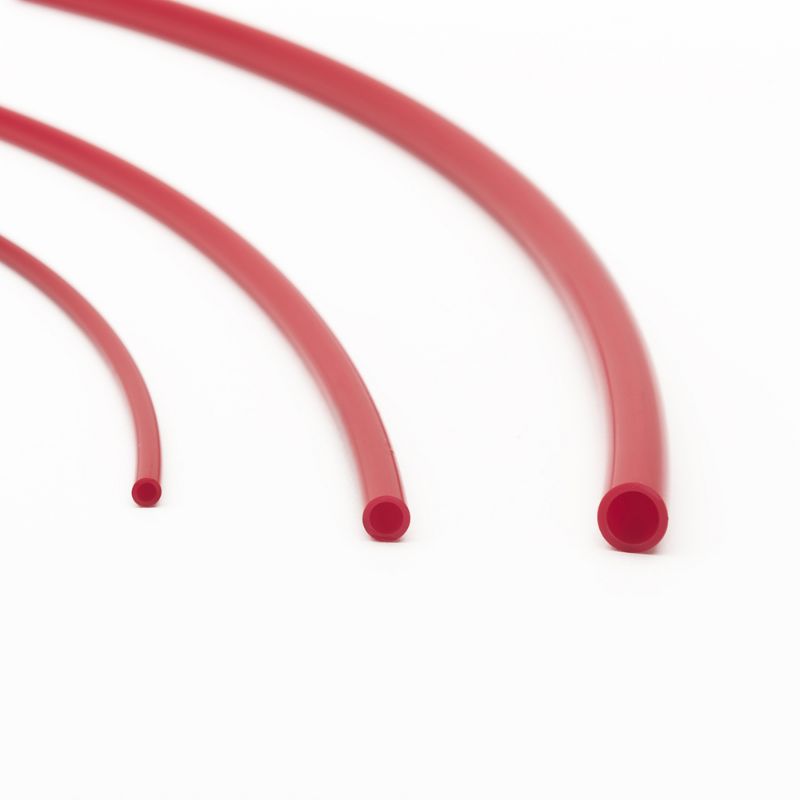

Parker 1120-10B-RED-250 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	Quote Required
Partner Available:	3350 In Stock

Brand Parker

Part No. 1120-10B-RED-250

$3.61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Air
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Tube Outside Diameter	0.625 inch	Application	Air Brake
Size	-10	Color	Red
Weight	0.07 lb/ft	Cover Color	Red
Product Type	Reinforced	Tube Material	Polyamide (PA) Fiber Reinforcement
Cover Material	Polyamide (PA)	Compatible Fitting	NTA®
Specifications Met	SAE J844	Minimum Bend Radius	2-1/2 inch
Tube Inside Diameter	11.2 mm	Minimum Burst Pressure	62.1 bar
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	200 °F
Tube O.D. (inch)	5/8	Color	Red
Standard Pack Qty (ft)	250
