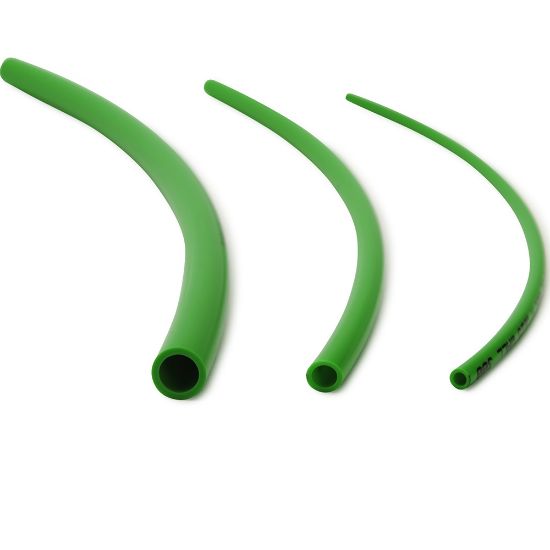

Parker 1120-4A-GRN-1000 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	Quote Required
Partner Available:	31329 In Stock

Brand Parker

Part No. 1120-4A-GRN-1000

$0.92

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Air
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Size	-4	Cover Material	n/a
Minimum Bend Radius	1 inch	Color	Green
Tube Outside Diameter	0.25 inch	Tube Inside Diameter	0.17 inch
Cover Color	n/a	Application	Transportation
Weight	0.018 kg/m	Tube Material	Polyamide (PA)
Compatible Fitting	Air Brake	Specifications Met	D.O.T. 49 CFR 571.106
Minimum Burst Pressure	82.7 bar	Maximum Operating Pressure	10.3 bar
Maximum Operating Temperature	93 °C	Tube O.D. (inch)	1/4
Color	Green	Standard Pack Qty (ft)	1000
