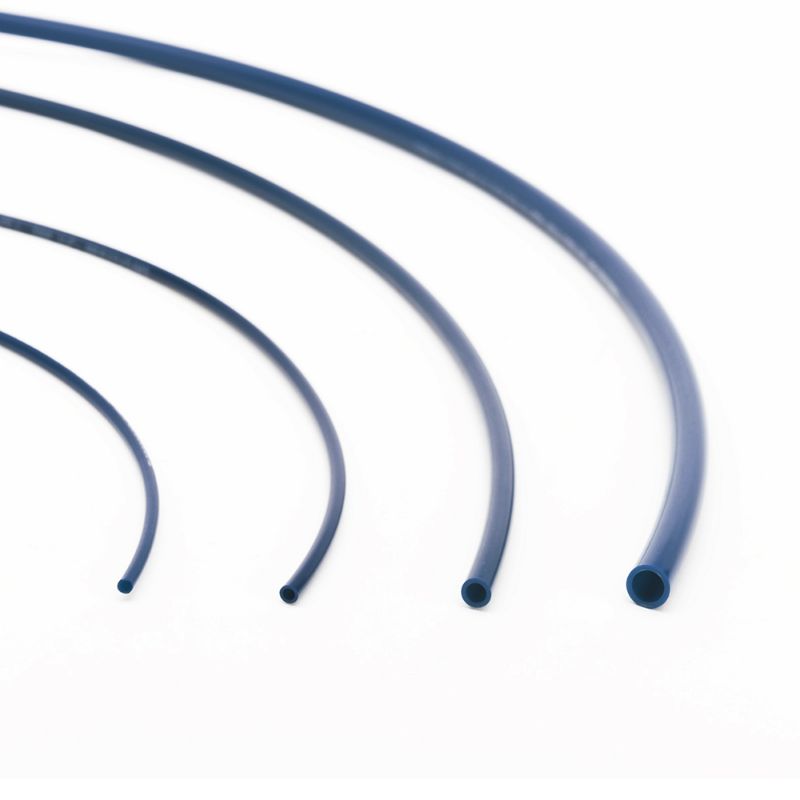

Parker 1120-10B-BLU-250 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

AFP Availability:	Quote Required
Partner Available:	496 In Stock

Brand Parker

Part No. 1120-10B-BLU-250

$3.85/each

Products specifications

Attribute name	Attribute value
Color	Blue	Tube Inside Diameter	11.2 mm
Cover Color	Blue	Minimum Bend Radius	2-1/2 inch
Tube Outside Diameter	15.9 mm	Tube Material	Polyamide (PA) Fiber Reinforcement
Cover Material	Polyamide (PA)	Specifications Met	SAE J844
Maximum Operating Pressure	150 psi	Weight	0.07 lb/ft
Application	Transportation	Minimum Operating Temperature	-40 °C
Product Type	Reinforced	Division	Parflex Division
Maximum Operating Temperature	93 °C	Minimum Burst Pressure	900 psi
Size	-10	Compatible Fitting	PTC
Media	Air	Tube O.D. (inch)	5/8
Color	Blue	Standard Pack Qty (ft)	250
