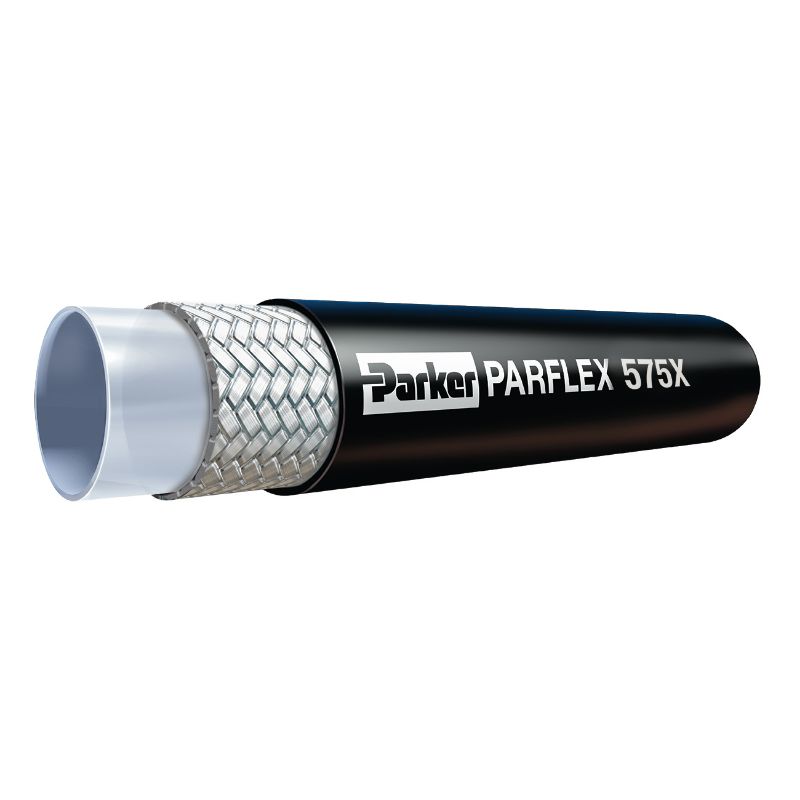

Parker 575X-12 - 5,000 PSI Hydraulic Hose - 575X/575XN

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast response times.

Availability:	Quote Required
Partner Available:	495 In Stock

Brand Parker

Part No. 575X-12

$36.51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/4 inch
Specifications Met	DNV GL	Application	Marine
Cover Material	Polyurethane	Weight	0.24 lb/ft
Compatible Fitting	CG Series	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	100 °C	Division	Parflex Division
Design Factor	4:1	Minimum Bend Radius	8 inch
Hose Reinforcement Material	Aramid Fiber	Media	Air
Hose Inner Tube Material	Polyamide (PA)	Maximum Operating Pressure	345 bar
Outside Diameter	29.2 mm	Size	-12
Hose I.D. (inch)	3/4	Cover Material	Polyurethane
