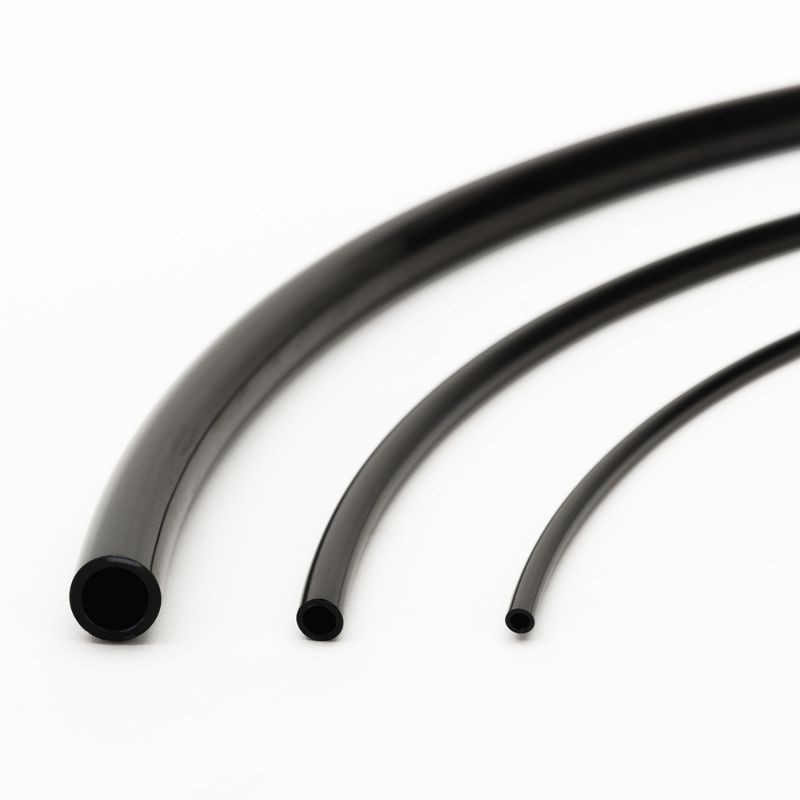

Parker 1120-4A-BLK-1000 - Nylon Air Brake Tubing

Name: Parker 1120-4A-BLK-1000 - Nylon Air Brake Tubing
SKU: 1120-4A-BLK-1000
Price: 0.94 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

AFP Availability:

1046 In Stock

Sumter, SC

1,046

Partner Available:

98268 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1120-4A-BLK-1000

$0.94/each

Qty:

Products specifications

Attribute name	Attribute value
Application	Transportation	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	93 °C	Division	Parflex Division
Compatible Fitting	Prestomatic	Media	Air
Size	-4	Minimum Burst Pressure	82.7 bar
Maximum Operating Pressure	150 psi	Color	Black
Tube Inside Diameter	0.17 inch	Cover Color	n/a
Cover Material	n/a	Specifications Met	D.O.T. 49 CFR 571.106
Minimum Bend Radius	1 inch	Tube Material	Polyamide (PA)
Weight	0.012 lb/ft	Tube Outside Diameter	0.25 inch
Tube O.D. (inch)	1/4	Standard Pack Qty (ft)	1000
Color	Black
