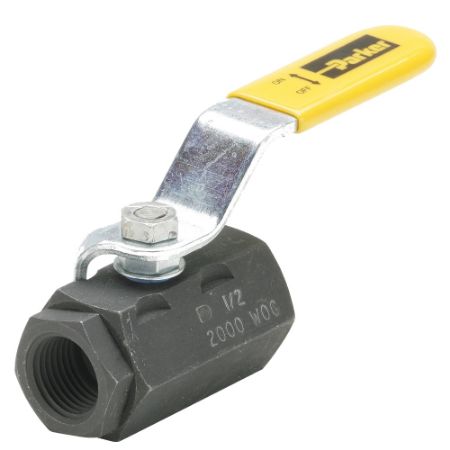

Industrial Ball Valves - Carbon Steel
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's carbon steel ball valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Straight Thread x Female Straight Thread
• Panel Mount
• High Pressure 6,000 psi
Options for the carbon steel ball valve include:
• Tee Handle
• Oval Handle
• Padlocking Handle
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Carbon Steel Phosphate Coated Body
• Steel Ball
• PTFE Seats/Seals
• Delrin with Molybdenum Disulphide Seats (Series 500HP, 506HP)
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Hydraulic Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Maximum Flow Rate | Connection Size | Orifice Size | Body Material | Actuation Type | Specifications Met | Maximum Operating Pressure | Division | Connection Type | Handle Type | Configuration | Shape | Mounting Type | Product Type | Seat Material | Ball Material | Seal Material | Function | Operation Type | Maximum Operating Temperature | Locking Mechanism | Style | Connection 1 Thread Size (inch) | Maximum Working Pressure (psi) | Connection 1 Thread Style | Connection 2 Thread Style | Shape | Handle | Connection 2 Thread Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V500CS-12 | 28 In Stock | 74 In Stock | $67.96/each | EA | -20 | n/a | 3/4 | n/a | Carbon Steel | Manual | N/A | 138 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Female Pipe Ends | 3/4 | 2000 | Female Pipe | Female Pipe | In Line | Steel Lever | 3/4 | |
| V500CS-16 | 18 In Stock | 82 In Stock | $91.02/each | EA | -20 | n/a | 1 | n/a | Carbon Steel | Manual | N/A | 138 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Female Pipe Ends | 1 | 2000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1 | |
| V500CS-4 | 24 In Stock | 151 In Stock | $42.93/each | EA | -20 | n/a | 1/4 | n/a | Carbon Steel | Manual | N/A | 138 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Female Pipe Ends | 1/4 | 2000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1/4 | |
| V500CS-6 | 30 In Stock | 156 In Stock | $42.93/each | EA | -20 | n/a | 3/8 | n/a | Carbon Steel | Manual | N/A | 138 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Female Pipe Ends | 3/8 | 2000 | Female Pipe | Female Pipe | In Line | Steel Lever | 3/8 | |
| V500CS-8 | 41 In Stock | 326 In Stock | $44.80/each | EA | -20 | n/a | 1/2 | n/a | Carbon Steel | Manual | N/A | 138 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Female Pipe Ends | 1/2 | 2000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1/2 | |
| V500HP-12 | 12 In Stock | 60 In Stock | $199.24/each | EA | -10 | n/a | 3/4 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 3/4 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 3/4 | |
| V500HP-16 | 11 In Stock | 28 In Stock | $254.88/each | EA | -10 | n/a | 1 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1 | |
| V500HP-20 | Quote Required | 5 In Stock | $464.42/each | EA | -10 | n/a | 1 1/4 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1 1/4 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1 1/4 | |
| V500HP-24 | 1 Limited Stock | Quote Required | $610.60/each | EA | -10 | n/a | 1 1/2 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1 1/2 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1 1/2 | |
| V500HP-32 | Quote Required | $745.16/each | EA | -10 | n/a | 2 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 2 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 2 | ||
| V500HP-4 | 17 In Stock | 90 In Stock | $104.80/each | EA | -10 | n/a | 1/4 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1/4 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1/4 | |
| V500HP-6 | 18 In Stock | 69 In Stock | $116.46/each | EA | -10 | n/a | 3/8 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 3/8 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 3/8 | |
| V500HP-8 | 22 In Stock | 86 In Stock | $134.58/each | EA | -10 | n/a | 1/2 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1/2 | 6000 | Female Pipe | Female Pipe | In Line | Steel Lever | 1/2 | |
| V502CS-24 | 7 In Stock | 10 In Stock | $236.16/each | EA | -10 | n/a | 1 1/2 | n/a | Carbon Steel | Manual | N/A | 103 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 1 1/2 | 1500 | Female Pipe | Female Pipe | Panel mount | Steel Lever | 1 1/2 | |
| V502CS-32 | Quote Required | $282.03/each | EA | -10 | n/a | 2 | n/a | Carbon Steel | Manual | N/A | 103 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Female Pipe Ends | 2 | 1500 | Female Pipe | Female Pipe | Panel mount | Steel Lever | 2 | ||
| V506CS-4 | Quote Required | 48 In Stock | $120.72/each | EA | -20 | n/a | 1/4 | n/a | Carbon Steel | Manual | N/A | 206 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Straight Thread Ends | 1/8-27 | 3000 | SAE Straight Thread | SAE Straight Thread | In Line | Steel Lever | 7/16-20 | |
| V506CS-6 | Quote Required | 10 In Stock | $120.72/each | EA | -20 | n/a | 3/8 | n/a | Carbon Steel | Manual | N/A | 206 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Straight Thread Ends | 9/16-18 | 3000 | SAE Straight Thread | SAE Straight Thread | In Line | Steel Lever | 9/16-18 | |
| V506CS-8 | Quote Required | 7 In Stock | $119.04/each | EA | -20 | n/a | 1/2 | n/a | Carbon Steel | Manual | N/A | 206 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | PTFE | Steel | PTFE | Ball Valve | n/a | 425 | Non-Locking | Straight Thread Ends | 3/4-16 | 3000 | SAE Straight Thread | SAE Straight Thread | In Line | Steel Lever | 3/4-16 | |
| V506HP-12 | 1 Limited Stock | Quote Required | $199.24/each | EA | -10 | n/a | 3/4 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Straight Thread Ends | 1 1/16-12 UNF | 6000 | SAE J1926-1 | SAE J1926-1 | In Line | Steel Lever | 1 1/16-12 UNF | |
| V506HP-16 | 2 Limited Stock | 1 Limited Stock | $254.88/each | EA | -10 | n/a | 1 | n/a | Carbon Steel | Manual | N/A | 413 | Fluid System Connectors Division | NPT, Straight Thread, SAE J1926-1 | Lever | In-line | In-Line | Panel | Ball Valve | Delrin Molybdenum Disulphide | Steel | PTFE | Ball Valve | n/a | 210 | Non-Locking | Straight Thread Ends | 1 5/16-12 UNF | 6000 | SAE J1926-1 | SAE J1926-1 | In Line | Steel Lever | 1 5/16-12 UNF |
