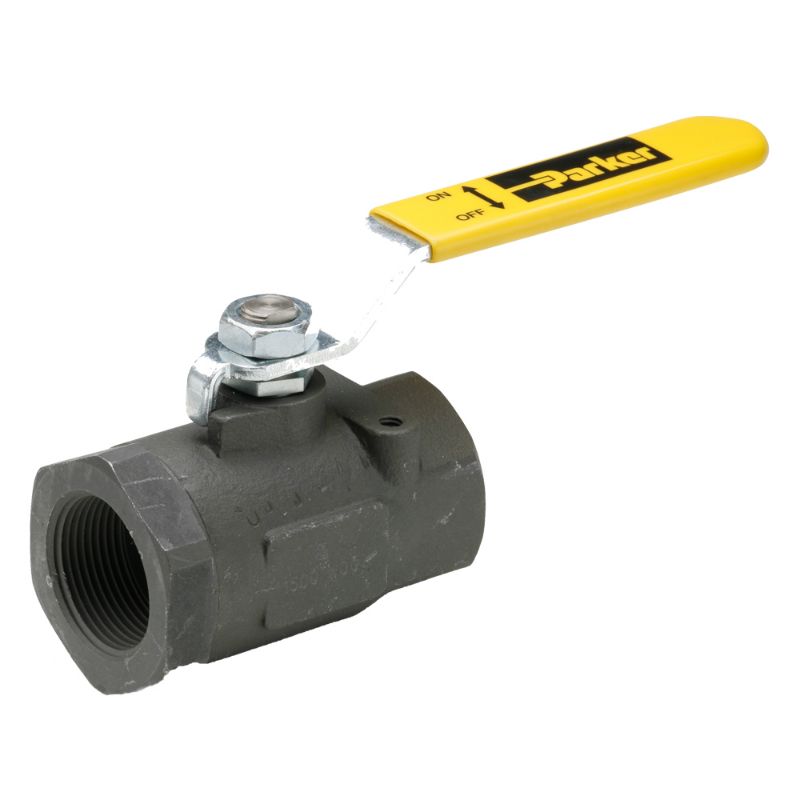

Parker V502CS-32 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502CS-32

$282.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Ball Valve
Specifications Met	n/a	Shape	in-line
Operation Type	n/a	Minimum Operating Temperature	-10
Maximum Operating Pressure	103	Orifice Size	n/a
Seal Material	PTFE	Connection Size	2
Actuation Type	Manual	Maximum Operating Temperature	210
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread, SAE J1926-1
Handle Type	Lever	Function	Ball Valve
Configuration	In-Line	Seat Material	PTFE
Mounting Type	Panel	Maximum Flow Rate	n/a
Body Material	Carbon Steel	Ball Material	Steel
Maximum Working Pressure (psi)	1500	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Connection 1 Thread Size (inch)	2	Connection 2 Thread Size (inch)	2
Handle	Steel Lever
