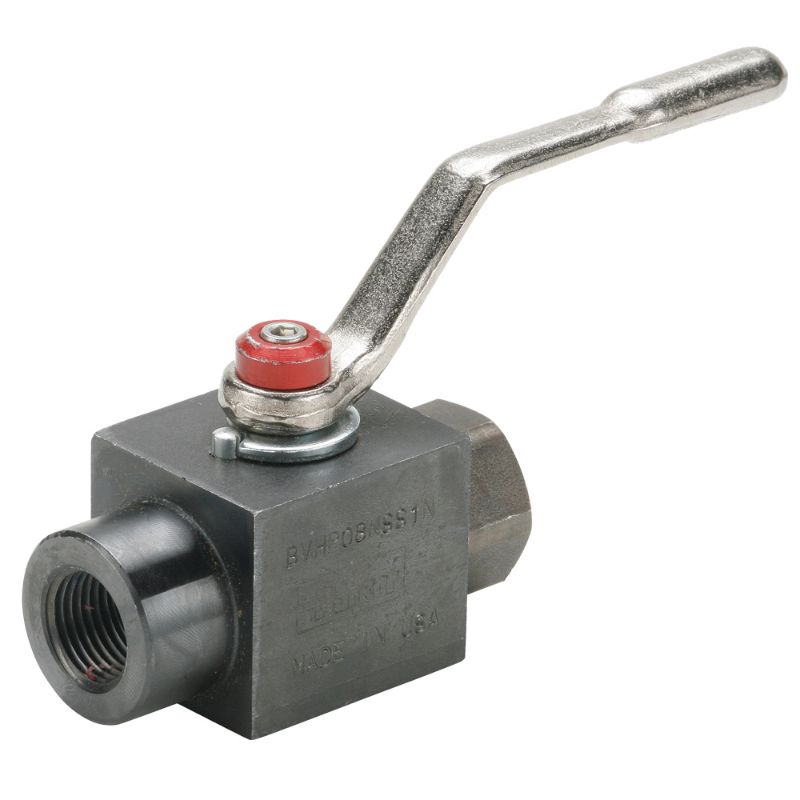

Parker V500HP-16 - Industrial Ball Valves - Carbon Steel

Name: Parker V500HP-16 - Industrial Ball Valves - Carbon Steel
SKU: V500HP-16
Price: 254.88 USD
Availability: InStock

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

AFP Availability:

11 In Stock

Jacksonville, FL	6
Ashland, VA	1 (Pickup only)
Knoxville, TN	1
Johnson City, TN	1 (Pickup only)
Knoxville, TN	1
Mooresville, NC	1

Partner Available:

30 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. V500HP-16

$254.88/each

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	1	Seal Material	PTFE
Maximum Operating Pressure	413	Maximum Operating Temperature	210
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread, SAE J1926-1
Function	Ball Valve	Handle Type	Lever
Configuration	In-Line	Seat Material	Delrin Molybdenum Disulphide
Mounting Type	Panel	Operation Type	n/a
Maximum Flow Rate	n/a	Body Material	Carbon Steel
Ball Material	Steel	Orifice Size	n/a
Specifications Met	n/a	Actuation Type	Manual
Shape	in-line	Product Type	Ball Valve
Minimum Operating Temperature	-10	Locking Mechanism	Non-Locking
Handle	Steel Lever	Shape	In Line
Connection 1 Thread Style	Female Pipe	Maximum Working Pressure (psi)	6000
Style	Female Pipe Ends	Connection 2 Thread Style	Female Pipe
Connection 1 Thread Size (inch)	1	Connection 2 Thread Size (inch)	1
