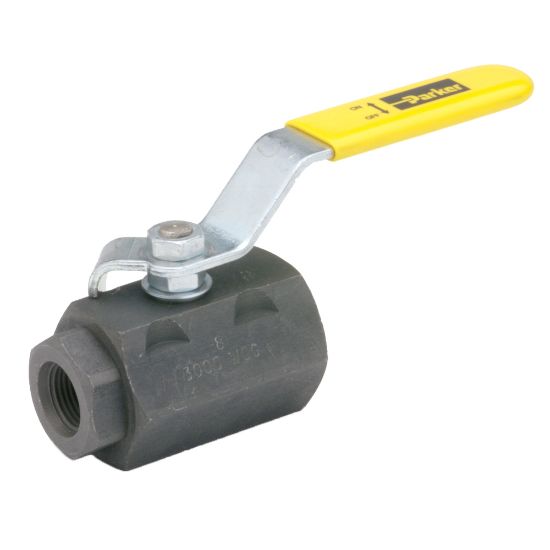

Parker V506CS-4 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	51 In Stock

Brand Parker

Part No. V506CS-4

$117.21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Specifications Met	N/A	Seal Material	PTFE
Minimum Operating Temperature	-20	Connection Size	1/4
Maximum Flow Rate	n/a	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Product Type	Ball Valve	Function	Ball Valve
Handle Type	Lever	Orifice Size	n/a
Operation Type	n/a	Ball Material	Steel
Configuration	In-line	Mounting Type	Panel
Body Material	Carbon Steel	Maximum Operating Temperature	425
Connection Type	NPT, Straight Thread, SAE J1926-1	Maximum Operating Pressure	206
Connection 1 Thread Size (inch)	1/8-27	Connection 2 Thread Size (inch)	7/16-20
Maximum Working Pressure (psi)	3000	Locking Mechanism	Non-Locking
Shape	In Line	Handle	Steel Lever
Style	Straight Thread Ends	Connection 1 Thread Style	SAE Straight Thread
Connection 2 Thread Style	SAE Straight Thread
