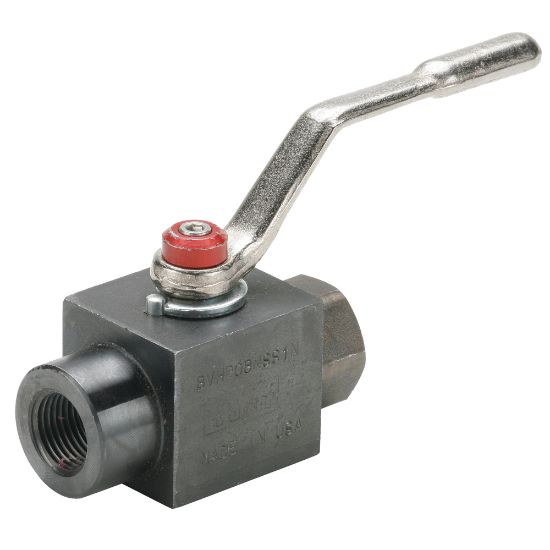

Parker V500HP-12 - Industrial Ball Valves - Carbon Steel

Name: Parker V500HP-12 - Industrial Ball Valves - Carbon Steel
SKU: V500HP-12
Price: 199.24 USD
Availability: LimitedAvailability

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

AFP Availability:

12 In Stock

Richmond, VA	2
Ashland, VA	2 (Pickup only)
Fayetteville, NC	2
Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
Knoxville, TN	2

Partner Available:

61 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. V500HP-12

$199.24/each

Qty:

Products specifications

Attribute name	Attribute value
Shape	in-line	Minimum Operating Temperature	-10
Operation Type	n/a	Maximum Flow Rate	n/a
Body Material	Carbon Steel	Mounting Type	Panel
Seal Material	PTFE	Actuation Type	Manual
Connection Size	3/4	Orifice Size	n/a
Product Type	Ball Valve	Specifications Met	n/a
Seat Material	Delrin Molybdenum Disulphide	Configuration	In-Line
Handle Type	Lever	Function	Ball Valve
Maximum Operating Pressure	413	Ball Material	Steel
Connection Type	NPT, Straight Thread, SAE J1926-1	Division	Fluid System Connectors Division
Maximum Operating Temperature	210	Connection 1 Thread Size (inch)	3/4
Shape	In Line	Handle	Steel Lever
Connection 2 Thread Style	Female Pipe	Connection 2 Thread Size (inch)	3/4
Maximum Working Pressure (psi)	6000	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
