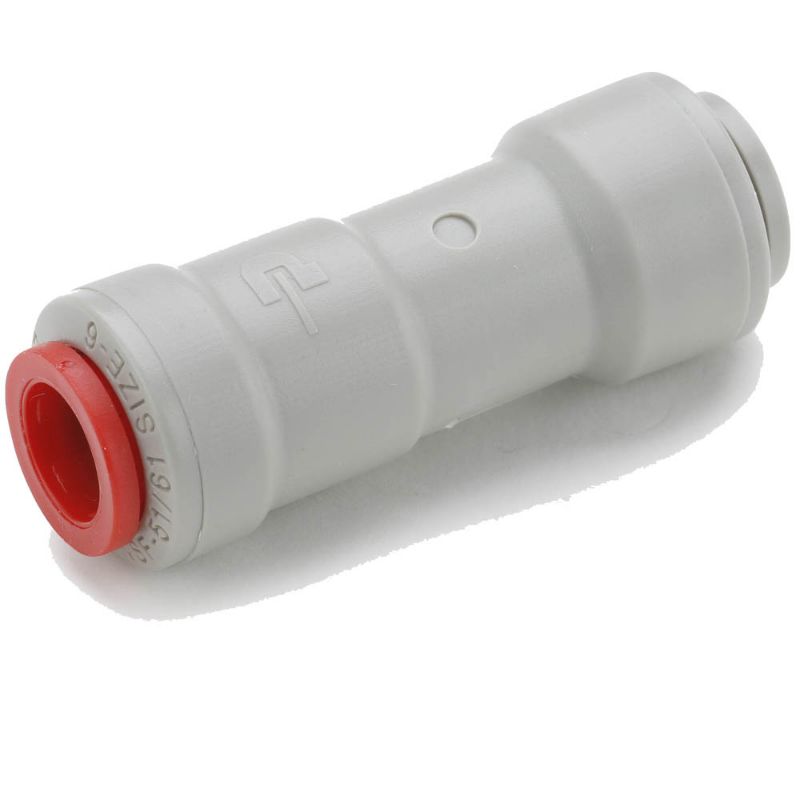

Parker A5VC5-MG - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. A5VC5-MG

$11.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Maximum Operating Pressure	10 bar	Connection 2 Size	n/a
Connection 2 Type	Push-to-Connect	Minimum Operating Temperature	1 °C
Application	Textile	Shape	In-Line
Cracking Pressure	1/3 psi	Connection 1 Size	n/a
Maximum Operating Temperature	65 °C	Valve Configuration	One Way
Gripping Ring Material	Stainless Steel	Body Material	Acetal
For Fluid Type	Food & Beverage (Beer, Wine)	Seal Material	EPDM
Connection Type	n/a	Body Material	Acetal
Configuration	Tube to Tube	Cracking Pressure	1/3
Connection 1 Tube Outside Diameter	5/16" (O.D.)	Collet Material	Red
Connection 2 Tube Outside Diameter	5/16" (O.D.)

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
