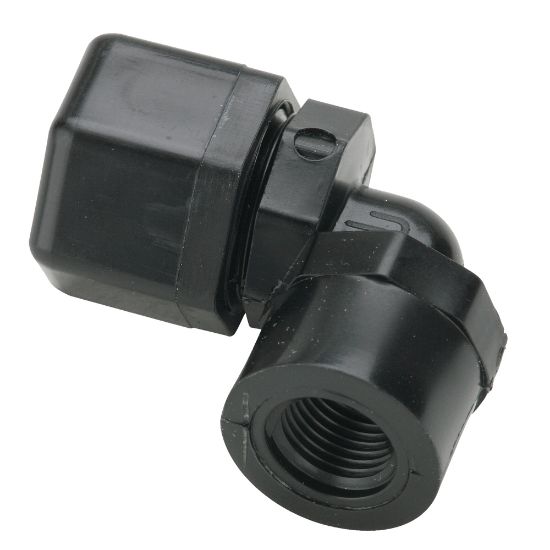

Parker P8FE6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	23 In Stock

Brand Parker

Part No. P8FE6

$4.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	10 bar
Tube Material	Glass	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302	Minimum Operating Temperature	-18 °C
Application	Purification	Specifications Met	NSF 51
Body Material	Polypropylene	Dimensional Weight	0.5504 lb
Division	Fluid System Connectors Division	For Fluid Type	Water
Maximum Operating Temperature	212 °F	Shape	Elbow 90°
Configuration	Tube to Female Pipe	Connection 2 Thread Size	3/8"
Body Material	Black Polypropylene	Connection 2 Type	NPTF
Connection 1 Tube Outside Diameter	1/2" (O.D.)	Connection 1 Type	Compression
