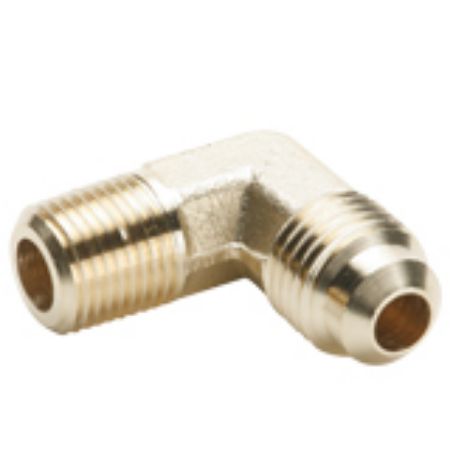

Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Technology | Body Material | Media | Division | Specifications Met | Division | O-Ring Material | Dimensional Weight | Maximum Operating Temperature | Nut Material | Minimum Operating Temperature | Maximum Operating Pressure | Application | Tube Material | Brand | Shape | Connection 1 Type | Connection 1 Thread Size | Product Style | Connection 2 Thread Size | Connection 3 Thread Size | Connection 2 Type | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 3 Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 144F-10 | Quote Required | 28 In Stock | $26.38 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.27594424460431655 lb | 121 °C | Brass | -65 °F | 2800 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 7/8-14 inch | Flare to Flare | 7/8-14 inch | 7/8-14 inch | Flare | 5/8 inch | 5/8 inch | 5/8 inch | Flare | |
| 144F-3 | Quote Required | TBD | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 131.0 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 3/8-24 inch | Flare to Flare | 3/8-24 inch | 3/8-24 inch | Flare | 3/16 inch | 3/16 inch | 3/16 inch | Flare | ||||
| 144F-4 | 6 In Stock | 302 In Stock | $5.28 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.11037769784172662 lb | 250 °F | Brass | -53 °C | 193 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 7/16-20 inch | Flare to Flare | 7/16-20 inch | 7/16-20 inch | Flare | 1/4 inch | 1/4 inch | 1/4 inch | Flare | |
| 144F-5 | Quote Required | 27 In Stock | $20.34 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 2800 psi | Pumps, Gas Grills, Coffee Makers, Adapters | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 1/2-20 inch | Flare to Flare | 1/2-20 inch | 1/2-20 inch | Flare | 5/16 inch | 5/16 inch | 5/16 inch | Flare | ||
| 144F-6 | 15 In Stock | 179 In Stock | $12.04 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.11037769784172662 lb | 121 °C | Brass | -53 °C | 193 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 5/8-18 inch | Flare to Flare | 5/8-18 inch | 5/8-18 inch | Flare | 3/8 inch | 3/8 inch | 3/8 inch | Flare | |
| 144F-6-6-4 | 1 Limited Stock | 92 In Stock | $59.43 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 °F | Brass | -53 °C | 68.9 bar | Pumps, Gas Grills, Coffee Makers, Adapters | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 5/8-18 inch | Flare to Flare | 5/8-18 inch | 7/16-20 inch | Flare | 3/8 inch | 3/8 inch | 1/4 inch | Flare | ||
| 144F-8 | 2 Limited Stock | 107 In Stock | $15.64 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 °F | Brass | -53 °C | 750 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 3/4-16 inch | Flare to Flare | 3/4-16 inch | 3/4-16 inch | Flare | 1/2 inch | 1/2 inch | 1/2 inch | Flare | ||
| 144F-8-8-6 | Quote Required | 12 In Stock | $35.88 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -53 °C | 51.7 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Tee | Flare | 3/4-16 inch | Flare to Flare | 3/4-16 inch | 5/8-18 inch | Flare | 1/2 inch | 1/2 inch | 3/8 inch | Flare | ||
| 145F-10-8 | Quote Required | 2 Limited Stock | $26.98 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.27594424460431655 lb | 121 °C | Brass | -65 °F | 44.8 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 7/8-14 inch | Flare to Pipe | 7/8-14 inch | 1/2 inch | Flare | 5/8 inch | 5/8 inch | NA | Male Pipe | |
| 145F-2-2 | 11 In Stock | 8 In Stock | $59.80 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -53 °C | 193.0 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 5/16-24 inch | Flare to Pipe | 5/16-24 inch | 1/8 inch | Flare | 1/8 inch | 1/8 inch | NA | Male Pipe | ||
| 145F-4-2 | 6 In Stock | 748 In Stock | $7.21 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 1,400 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 7/16-20 inch | Flare to Pipe | 7/16-20 inch | 1/8 inch | Flare | 1/4 inch | 1/4 inch | NA | Male Pipe | ||
| 145F-4-4 | 49 In Stock | 183 In Stock | $14.55 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 96.5 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 7/16-20 inch | Flare to Pipe | 7/16-20 inch | 1/4 inch | Flare | 1/4 inch | 1/4 inch | NA | Male Pipe | ||
| 145F-5-4 | 6 In Stock | 29 In Stock | $23.01 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 1,200 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 1/2-20 inch | Flare to Pipe | 1/2-20 inch | 1/4 inch | Flare | 5/16 inch | 5/16 inch | NA | Male Pipe | ||
| 145F-6-4 | 6 In Stock | 145 In Stock | $13.67 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.11037769784172662 lb | 121 °C | Brass | -53 °C | 1,000 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 5/8-18 inch | Flare to Pipe | 5/8-18 inch | 1/4 inch | Flare | 3/8 inch | 3/8 inch | NA | Male Pipe | |
| 145F-6-6 | 12 In Stock | 24 In Stock | $22.03 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 °F | Brass | -65 °F | 1,000 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 5/8-18 inch | Flare to Pipe | 5/8-18 inch | 3/8 inch | Flare | 3/8 inch | 3/8 inch | NA | Male Pipe | ||
| 145F-6-8 | Quote Required | TBD | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 121 °C | Brass | -65 °F | 68.9 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 5/8-18 inch | Flare to Pipe | 5/8-18 inch | 1/2 inch | Flare | 3/8 inch | 3/8 inch | NA | Male Pipe | ||||
| 145F-8-6 | 24 In Stock | 48 In Stock | $24.07 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 °F | Brass | -53 °C | 51.7 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 3/4-16 inch | Flare to Pipe | 3/4-16 inch | 3/8 inch | Flare | 1/2 inch | 1/2 inch | NA | Male Pipe | ||
| 145F-8-8 | 40 In Stock | 127 In Stock | $35.65 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 °F | Brass | -53 °C | 750 psi | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | Branch Tee | Flare | 3/4-16 inch | Flare to Pipe | 3/4-16 inch | 1/2 inch | Flare | 1/2 inch | 1/2 inch | NA | Male Pipe | ||
| 1495F-12-12 | Quote Required | 5 In Stock | $65.75 | EA | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 0.5518884892086331 lb | 121 °C | Brass | -53 °C | 37.9 bar | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | 90° Forged Elbow | Flare | 1-1/16-14 inch | Flare to Pipe | 1-1/16-14 inch | NA | SAE Straight Thread | 3/4 inch | NA | NA | NA | |
| 1495F-12-8 | Quote Required | TBD | Fluid & Gas Handling | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Fluid System Connectors Division | SAE J512, SAE J513 | Fluid System Connectors Division | Fluorocarbon | 250 | Brass | -65 | 550 | Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Parker | 90° Forged Elbow | Flare | 1-1/16-14 inch | Flare to Pipe | 1-1/16-14 inch | NA | SAE Straight Thread | 3/4 inch | NA | NA | NA |
