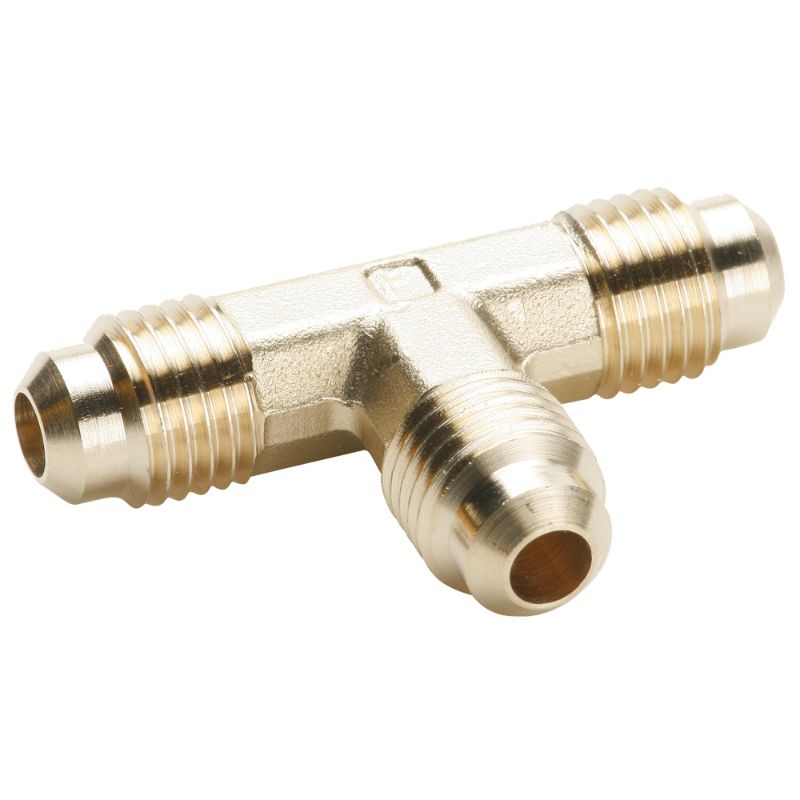

Parker 144F-8-8-6 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. 144F-8-8-6

$35.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Specifications Met	SAE J512, SAE J513
Body Material	Brass	Minimum Operating Temperature	-53 °C
O-Ring Material	Fluorocarbon	Maximum Operating Pressure	51.7 bar
Nut Material	Brass	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Connection 1 Thread Size	3/4-16 inch
Connection 3 Type	Flare	Connection 3 Tube Outside Diameter	3/8 inch
Connection 2 Thread Size	3/4-16 inch	Shape	Tee
Connection 1 Type	Flare	Connection 2 Tube Outside Diameter	1/2 inch
Product Style	Flare to Flare	Connection 1 Tube Outside Diameter	1/2 inch
Connection 2 Type	Flare	Connection 3 Thread Size	5/8-18 inch
