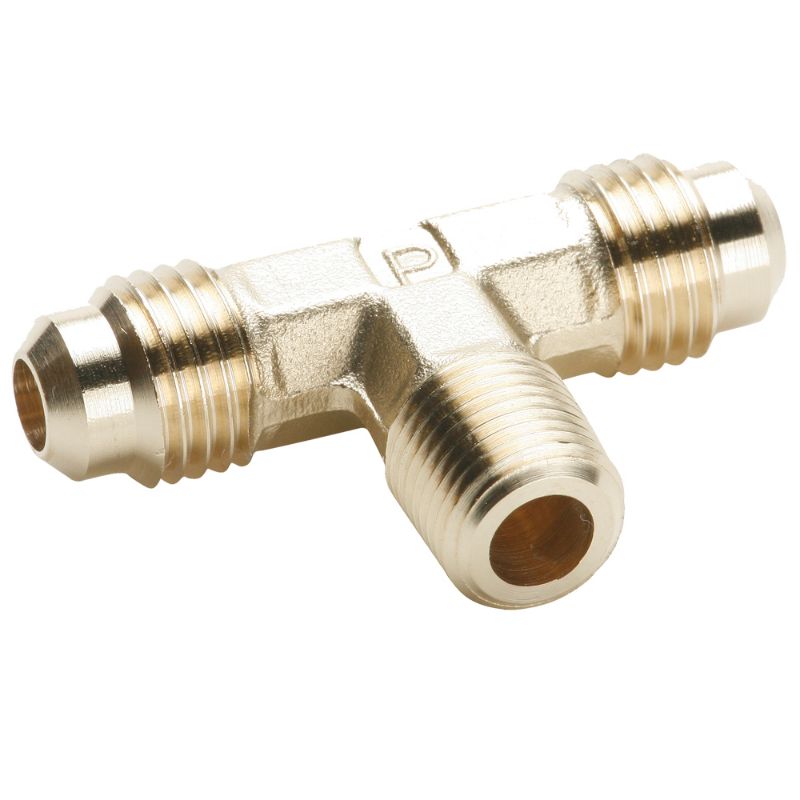

Parker 145F-2-2 - Brass 45° Flare Fittings

Name: Parker 145F-2-2 - Brass 45° Flare Fittings
SKU: 145F-2-2
Price: 63.68 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

11 In Stock

Sumter, SC

Partner Available:

2 Limited Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 145F-2-2

$63.68/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Minimum Operating Temperature	-53 °C	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Brand	Parker	Maximum Operating Pressure	193.0 bar
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Connection 2 Type	Flare
Connection 3 Tube Outside Diameter	NA	Connection 3 Thread Size	1/8 inch
Connection 1 Thread Size	5/16-24 inch	Connection 1 Tube Outside Diameter	1/8 inch
Product Style	Flare to Pipe	Shape	Branch Tee
Connection 2 Thread Size	5/16-24 inch	Connection 1 Type	Flare
Connection 2 Tube Outside Diameter	1/8 inch	Connection 3 Type	Male Pipe
