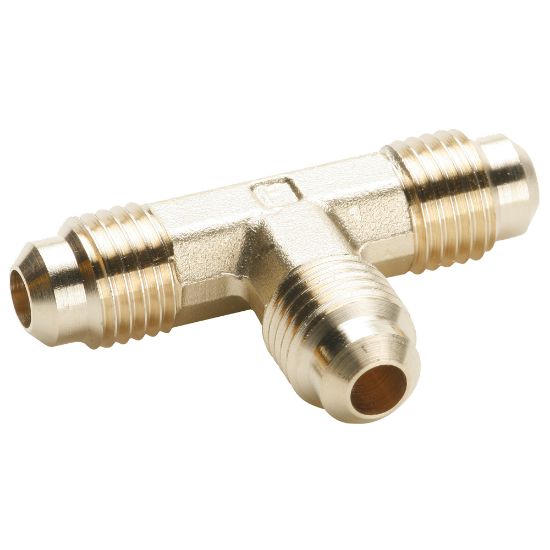

Parker 144F-10 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	22 In Stock

Brand Parker

Part No. 144F-10

$28.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Dimensional Weight	0.27594424460431655 lb	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Maximum Operating Temperature	121 °C
O-Ring Material	Fluorocarbon	Nut Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Body Material	Brass
Minimum Operating Temperature	-65 °F	Division	Fluid System Connectors Division
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	2800 psi
Shape	Tee	Connection 1 Type	Flare
Connection 1 Thread Size	7/8-14 inch	Product Style	Flare to Flare
Connection 2 Thread Size	7/8-14 inch	Connection 3 Thread Size	7/8-14 inch
Connection 2 Type	Flare	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	5/8 inch
Connection 3 Type	Flare
