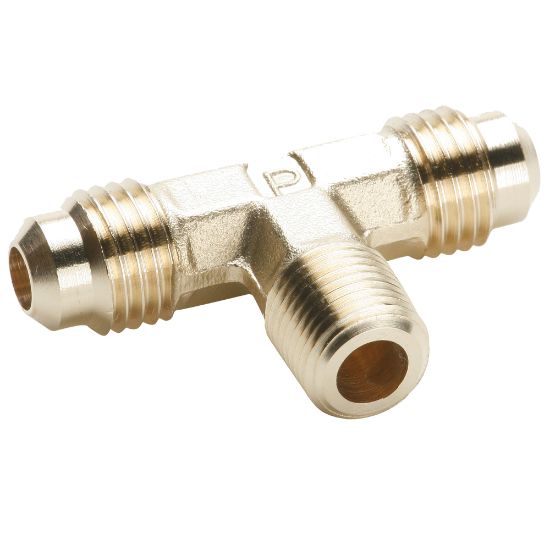

Parker 145F-5-4 - Brass 45° Flare Fittings

Name: Parker 145F-5-4 - Brass 45° Flare Fittings
SKU: 145F-5-4
Price: 24.50 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

6 In Stock

Jacksonville, FL

Partner Available:

29 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 145F-5-4

$24.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	1,200 psi
Brand	Parker	Technology	Fluid & Gas Handling
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Nut Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Body Material	Brass
Division	Fluid System Connectors Division	Minimum Operating Temperature	-65 °F
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Connection 2 Tube Outside Diameter	5/16 inch
Product Style	Flare to Pipe	Shape	Branch Tee
Connection 3 Thread Size	1/4 inch	Connection 1 Type	Flare
Connection 1 Thread Size	1/2-20 inch	Connection 2 Thread Size	1/2-20 inch
Connection 3 Type	Male Pipe	Connection 2 Type	Flare
Connection 1 Tube Outside Diameter	5/16 inch	Connection 3 Tube Outside Diameter	NA
