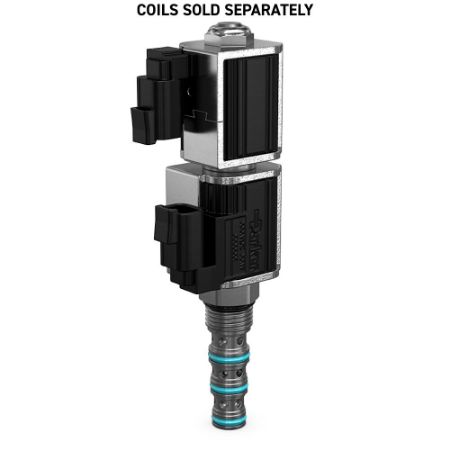

4 Way 3 Position Spool Type Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 4-way, 3-position spool-type solenoid valves feature a robust design that ensures reliable and repeatable performance with minimized pressure drop. These valves can operate with hydraulic system flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi) with open, closed, float, and tandem center configurations available. Parker’s 4-way, 3-position spool-type solenoid valves also have manual override options and are perfect for double acting cylinders, pilot circuits, and bi-directional motor applications while utilizing an easy to configure and use double-solenoid stack. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• High pressure capability
• Manual override options
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Bi-directional motors
• Pilot circuits
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• High pressure capability
• Manual override options
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Bi-directional motors
• Pilot circuits
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
| Action | Part No. | Availability | Partner Available | Price | Configuration | Maximum Tank Pressure | Function | For Fluid Type | Coil Type | Cavity Size | Override Functionality | Maximum Operating Temperature | Leak Rate | Maximum Flow Rate | Operation Type | Input Voltage | Body Material | Mounting Type | Operating Temperature | Installation Torque | Minimum Operating Temperature | Division | Actuation Type | Flow Rate | Seal Material | Weight | Coil Nut Tightening Torque | Maximum Operating Pressure | Response Time | Valve Material | Filter Efficiency Rating | Maximum Inlet Pressure Rating | Maximum Kinematic Viscosity | Flow Rate | Maximum Inlet Pressure Rating | Actuation Type | Configuration | Seal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSH12557DNN | Quote Required | $353.75/each | Tandem Center | 3000 psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C12-4L | Push/Pull - Center Detent | +121 °C | 160 @ 3000 PSI (210 BAR) cm3/min | 15 Gal/min | Solenoid operated, Manually operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 74 Nm | -34 °C | Hydraulic Systems Division | Electrical, Manual | 15 Gal/min | Nitrile | 1 lb | 4.1 Nm | 350 bar | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 15 GAL/MIN, 57 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Tandem Center | Nitrile | ||
| DSL105C1 | Quote Required | 16 In Stock | $169.04/each | Closed Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +200 °F | 160 @ 3600 PSI (250 BAR) cm3/min | 7 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -35 to +200 °F | 37-41 lb-ft | -37 °C | Hydraulic Systems Division | Electrical | 26 L/min | D-Ring (Standard) | 0.64 lb | 7-10 Nm | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Closed Center | D-Ring (Standard) | |
| DSL105C1MV | Quote Required | $257.75/each | Closed Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | Push/Pull | +204 °C | 160 @ 3600 PSI (250 BAR) cm3/min | 7 Gal/min | Solenoid operated, Manually operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -15 to +400 °F | 50-56 Nm | -26 °C | Hydraulic Systems Division | Electrical, Manual | 7 Gal/min | Fluorocarbon | 0.64 lb | 5-7 lb-ft | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical, Manual | Closed Center | Fluorocarbon | ||
| DSL105C1N | Quote Required | $153.50/each | Closed Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +121 °C | 160 @ 3600 PSI (250 BAR) cm3/min | 7 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 37-41 lb-ft | -30 °F | Hydraulic Systems Division | Electrical | 7 Gal/min | Nitrile | 0.64 lb | 7-10 Nm | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Closed Center | Nitrile | ||
| DSL105C4 | 1 Limited Stock | 10 In Stock | $138.50/each | Floating Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +200 °F | 160 @ 3600 PSI (250 BAR) cm3/min | 7 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -37 to +93 °C | 37-41 lb-ft | -35 °F | Hydraulic Systems Division | Electrical | 7 Gal/min | D-Ring (Standard) | 0.64 lb | 7-10 Nm | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Floating Center | D-Ring (Standard) | |
| DSL105C4N | Quote Required | $153.50/each | Floating Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +121 °C | 160 @ 3600 PSI (250 BAR) cm3/min | 7 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -30 to +250 °F | 37-41 lb-ft | -30 °F | Hydraulic Systems Division | Electrical | 7 Gal/min | Nitrile | 0.29 kg | 5-7 lb-ft | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Floating Center | Nitrile | ||
| DSL105C9 | Quote Required | $153.00/each | Tandem Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +93 °C | 160 @ 3600 PSI (250 BAR) cm3/min | 5 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -35 to +200 °F | 37-41 lb-ft | -35 °F | Hydraulic Systems Division | Electrical | 19 L/min | D-Ring (Standard) | 0.29 kg | 7-10 Nm | 250 bar | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 250 bar | 45-2000 SSU (6 to 420 cSt) | 5 GAL/MIN, 19 L/MIN | 3600 PSI, 250 BAR | Electrical | Tandem Center | D-Ring (Standard) | ||
| DSL105C9M | Quote Required | $265.50/each | Tandem Center | N/A psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | Push/Pull | +200 °F | 160 @ 3600 PSI (250 BAR) cm3/min | 5 Gal/min | Solenoid operated, Manually operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -37 to +93 °C | 37-41 lb-ft | -37 °C | Hydraulic Systems Division | Electrical, Manual | 19 L/min | D-Ring (Standard) | 0.64 lb | 5-7 lb-ft | 3600 psi | 40-150 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 3600 psi | 45-2000 SSU (6 to 420 cSt) | 5 GAL/MIN, 19 L/MIN | 3600 PSI, 250 BAR | Electrical, Manual | Tandem Center | D-Ring (Standard) | ||
| GS025100N | Quote Required | 1 Limited Stock | $147.83/each | Closed Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil | C08-4 | N/A | +121 °C | 250 @ 5000 PSI (350 BAR) cm3/min | 4.5 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 30 Nm | -30 °F | Hydraulic Systems Division | Electrical | 17 L/min | Nitrile | 0.4 lb | 3 lb-ft | 350 bar | 50 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 4.5 GAL/MIN, 17 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Nitrile | |
| GS025300N | Quote Required | 11 In Stock | $149.76/each | Floating Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil | C08-4 | N/A | +121 °C | 250 @ 5000 PSI (350 BAR) cm3/min | 15 L/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -30 to +250 °F | 30 Nm | -34 °C | Hydraulic Systems Division | Electrical | 15 L/min | Nitrile | 0.4 lb | 3 lb-ft | 350 bar | 50 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 4 GAL/MIN, 15 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Nitrile | |
| GS025310N | Quote Required | $180.50/each | Floating Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 1/2" Super Coil | C08-4 | Non-Detetented | +121 °C | 250 @ 5000 PSI (350 BAR) cm3/min | 4 Gal/min | Solenoid operated, Manually operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -30 to +250 °F | 30 Nm | -34 °C | Hydraulic Systems Division | Electrical, Manual | 15 L/min | Nitrile | 0.4 lb | 4.1 Nm | 5000 psi | 50 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 4 GAL/MIN, 15 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Floating Center | Nitrile | ||
| GS045200ND | Quote Required | 8 In Stock | $188.87/each | Closed Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +250 °F | 160 @ 3000 PSI (210 BAR) cm3/min | 42 L/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -30 to +250 °F | 25 lb-ft | -34 °C | Hydraulic Systems Division | Electrical | 42 L/min | Nitrile | 0.26 kg | 4.1 Nm | 5000 psi | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Nitrile | |
| GS045200VD | Quote Required | $178.50/each | Closed Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +204 °C | 160 @ 3000 PSI (210 BAR) cm3/min | 42 L/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -26 to +204 °C | 34 Nm | -26 °C | Hydraulic Systems Division | Electrical | 42 L/min | Fluorocarbon | 0.58 lb | 3 lb-ft | 5000 psi | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Fluorocarbon | ||
| GS045400ND | Quote Required | 1520 In Stock | $194.67/each | Floating Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +250 °F | 160 @ 3000 PSI (210 BAR) cm3/min | 42 L/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 34 Nm | -34 °C | Hydraulic Systems Division | Electrical | 42 L/min | Nitrile | 0.26 kg | 3 lb-ft | 350 bar | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Nitrile | |
| GS045400VD | Quote Required | $183.25/each | Floating Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +400 °F | 160 @ 3000 PSI (210 BAR) cm3/min | 11 Gal/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -15 to +400 °F | 34 Nm | -26 °C | Hydraulic Systems Division | Electrical | 42 L/min | Fluorocarbon | 0.58 lb | 3 lb-ft | 350 bar | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 5000 psi | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Fluorocarbon | ||
| GS045700ND | Quote Required | 96 In Stock | $201.07/each | Tandem Center | 3000 psi | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | N/A | +121 °C | 160 @ 3000 PSI (210 BAR) cm3/min | 42 L/min | Solenoid operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 34 Nm | -34 °C | Hydraulic Systems Division | Electrical | 42 L/min | Nitrile | 0.58 lb | 3 lb-ft | 350 bar | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 350 bar | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Tandem Center | Nitrile | |
| GS045750ND | Quote Required | $209.00/each | Tandem Center | 210 bar | 4-way | Mineral-based or synthetic hydraulic fluids | 5/8" Super Coil | C10-4 | Push/Pull - Center Detent | +121 °C | 160 @ 3000 PSI (210 BAR) cm3/min | 11 Gal/min | Solenoid operated, Manually operated | 85% of rated voltage at 72°F (20°C) min | N/A | Screw in cartridge valve | -34 to +121 °C | 34 Nm | -30 °F | Hydraulic Systems Division | Electrical, Manual | 11 Gal/min | Nitrile | 0.58 lb | 4.1 Nm | 350 bar | 30-60 ms | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 350 bar | 45-2000 SSU (6 to 420 cSt) | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Tandem Center | Nitrile |
