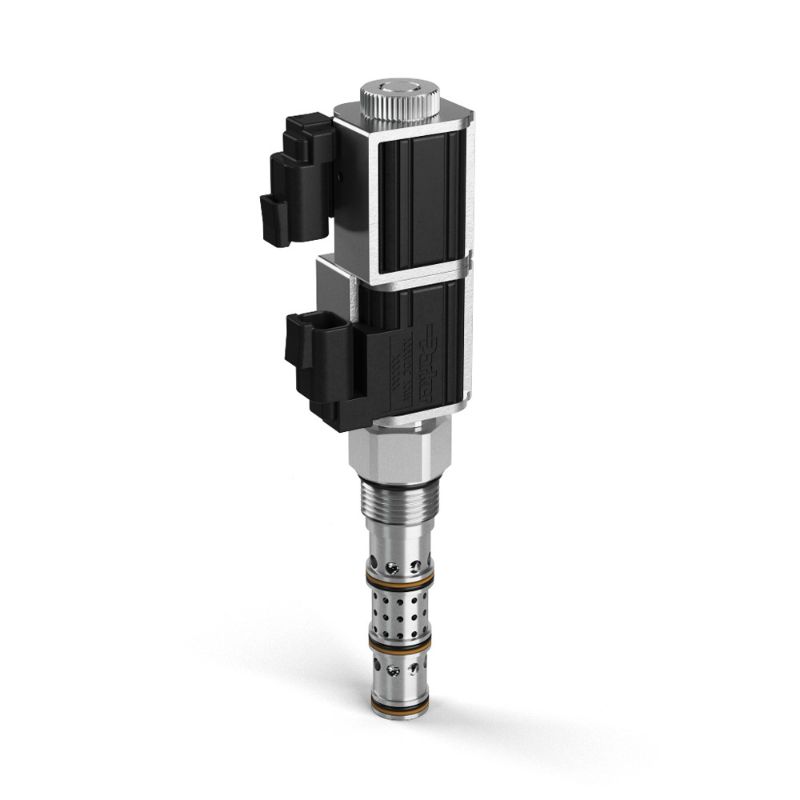

Parker DSH12557DNN - 4 Way 3 Position Spool Type Solenoid Valve

REGIONAL - Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures up to 350 bar (5000 psi); closed, open, float, and tandem centers
AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. DSH12557DNN
$353.75/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Parker’s direct acting 4-way, 3-position spool-type solenoid valves feature a robust design that ensures reliable and repeatable performance with minimized pressure drop. These valves can operate with hydraulic system flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi) with open, closed, float, and tandem center configurations available. Parker’s 4-way, 3-position spool-type solenoid valves also have manual override options and are perfect for double acting cylinders, pilot circuits, and bi-directional motor applications while utilizing an easy to configure and use double-solenoid stack. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.



Markets:

• Aerial

• Agriculture

• Construction

• Material Handling

• Miscellaneous Industrial

• Miscellaneous Manufacturing

• Miscellaneous Mobile



Features/Benefits:

• Replaceable one-piece coils with low amp draw

• High flow capacity

• High pressure capability

• Manual override options

• Low hysteresis

• All external parts zinc plated



Value Statement:

Parker DSH125-5 solenoid operated, 12-size directional control valves achieve market leading performance which reduces manifold size and complexity in high flow circuits.



Applications:

• Reversing flow

• Actuator applications

• Bi-directional motors

• Pilot circuits



Additional Technical Insight:

Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.

Products specifications
Attribute nameAttribute value
UOMEAConfigurationTandem Center
Maximum Tank Pressure3000 psiFunction4-way
For Fluid TypeMineral-based or synthetic hydraulic fluidsCoil Type5/8" Super Coil
Cavity SizeC12-4LOverride FunctionalityPush/Pull - Center Detent
Maximum Operating Temperature+121 °CLeak Rate160 @ 3000 PSI (210 BAR) cm3/min
Maximum Flow Rate15 Gal/minOperation TypeSolenoid operated, Manually operated
Input Voltage85% of rated voltage at 72°F (20°C) minBody MaterialN/A
Mounting TypeScrew in cartridge valveOperating Temperature-34 to +121 °C
Installation Torque74 NmMinimum Operating Temperature-34 °C
DivisionHydraulic Systems DivisionActuation TypeElectrical, Manual
Flow Rate15 Gal/minSeal MaterialNitrile
Weight1 lbCoil Nut Tightening Torque4.1 Nm
Maximum Operating Pressure350 barResponse Time30-60 ms
Valve MaterialAll parts steel. All operating parts hardened steelFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating5000 psiMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Flow Rate15 GAL/MIN, 57 L/MINMaximum Inlet Pressure Rating5000 PSI, 350 BAR
Actuation TypeElectrical, ManualConfigurationTandem Center
Seal TypeNitrile
