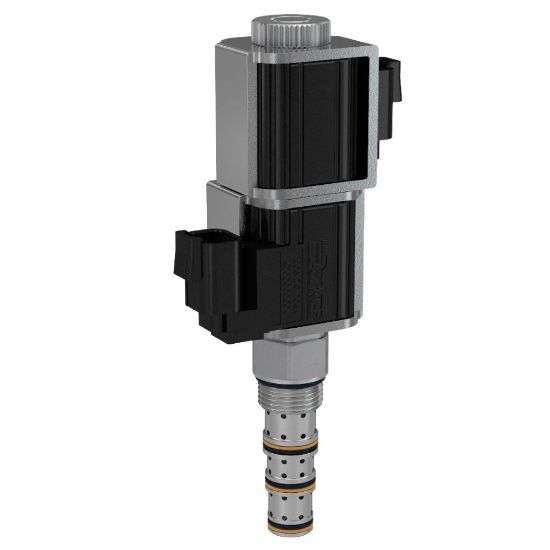

Parker GS045700ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	156 In Stock

Brand Parker

Part No. GS045700ND

$164.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	350 bar
Operation Type	Solenoid Operated	Installation Torque	34 Nm
Coil Nut Tightening Torque	3 lb-ft	Cavity Size	C10-4
Flow Rate	42 L/min	Maximum Flow Rate	42 L/min
Function	4-Way	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Tandem Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	5/8" Super Coil
Response Time	30-60 ms	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Maximum Tank Pressure	3000 psi	Weight	0.58 lb
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	11 GAL/MIN, 42 L/MIN
Actuation Type	Electrical	Configuration	Tandem Center
Seal Type	Nitrile
