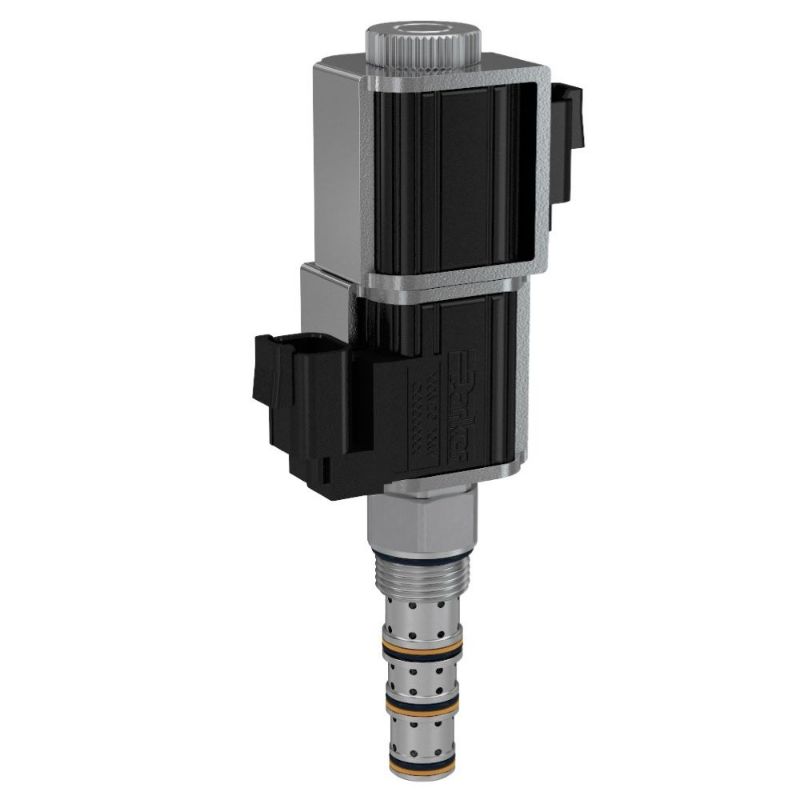

Parker GS045750ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS045750ND

$209.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Tank Pressure	210 bar
Maximum Inlet Pressure Rating	350 bar	Function	4-way
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.58 lb
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Response Time	30-60 ms
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	350 bar
Seal Material	Nitrile	Override Functionality	Push/Pull - Center Detent
Maximum Operating Temperature	+121 °C	Coil Type	5/8" Super Coil
Cavity Size	C10-4	Configuration	Tandem Center
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Operating Temperature	-34 to +121 °C	Body Material	N/A
Division	Hydraulic Systems Division	Mounting Type	Screw in cartridge valve
Maximum Flow Rate	11 Gal/min	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	4.1 Nm
Actuation Type	Electrical, Manual	Flow Rate	11 Gal/min
Installation Torque	34 Nm	Minimum Operating Temperature	-30 °F
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	11 GAL/MIN, 42 L/MIN
Actuation Type	Electrical, Manual	Configuration	Tandem Center
Seal Type	Nitrile
