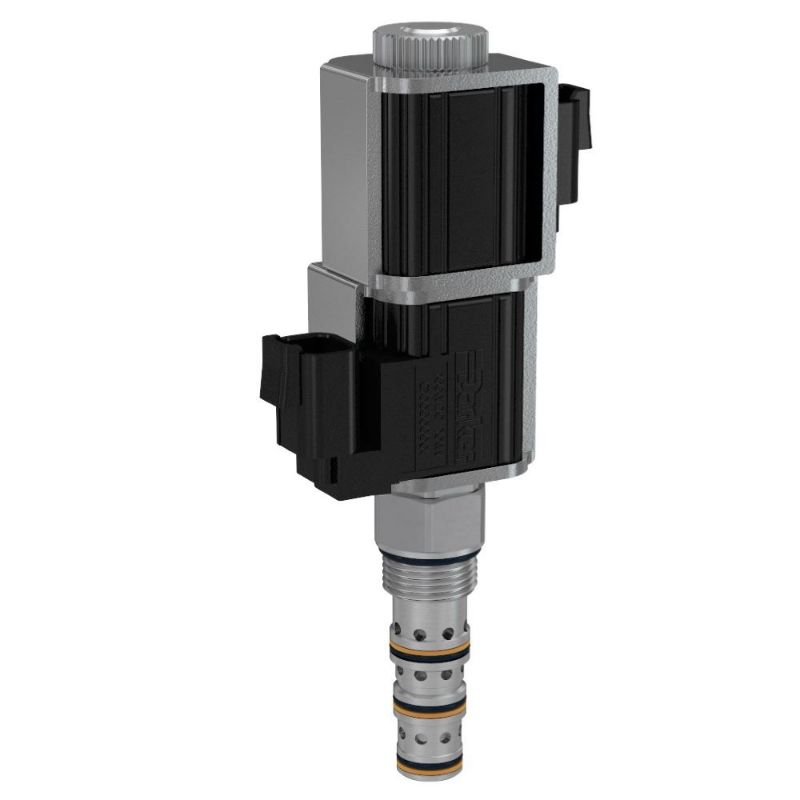

Parker GS045200ND - 4 Way 3 Position Spool Type Solenoid Valve

GLOBAL - Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures up to 350 bar (5000 psi); closed, open, float, and tandem centers
AFP Availability:
Quote Required
Partner Available:7 In Stock
Brand Parker
Part No. GS045200ND
$188.87/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Parker’s direct acting 4-way, 3-position spool-type solenoid valves feature a robust design that ensures reliable and repeatable performance with minimized pressure drop. These valves can operate with hydraulic system flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi) with open, closed, float, and tandem center configurations available. Parker’s 4-way, 3-position spool-type solenoid valves also have manual override options and are perfect for double acting cylinders, pilot circuits, and bi-directional motor applications while utilizing an easy to configure and use double-solenoid stack. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.



Markets:

• Aerial

• Agriculture

• Construction

• Material Handling

• Miscellaneous Industrial

• Miscellaneous Manufacturing

• Miscellaneous Mobile



Features/Benefits:

• Replaceable one-piece coils with low amp draw

• High flow capacity

• High pressure capability

• Manual override options

• Low hysteresis

• All external parts zinc plated



Value Proposition:

Parker GS04-5 solenoid operated, 10-size directional control valves achieve market leading performance which reduces manifold size and complexity in high flow circuits.



Applications:

• Reversing flow

• Actuator applications

• Bi-directional motors

• Pilot circuits



Additional Technical Insight:

Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.

Products specifications
Attribute nameAttribute value
UOMEAMaximum Tank Pressure210 bar
ConfigurationClosed CenterFor Fluid TypeMineral-based or synthetic hydraulic fluids
Function4-wayMaximum Inlet Pressure Rating5000 psi
Leak Rate160 @ 3000 PSI (210 BAR) cm3/minOverride FunctionalityN/A
Coil Type5/8" Super CoilCavity SizeC10-4
Maximum Operating Temperature+250 °FInstallation Torque25 lb-ft
DivisionHydraulic Systems DivisionMinimum Operating Temperature-34 °C
Operation TypeSolenoid operatedMaximum Flow Rate42 L/min
Body MaterialN/AInput Voltage85% of rated voltage at 72°F (20°C) min
Operating Temperature-30 to +250 °FMounting TypeScrew in cartridge valve
Weight0.26 kgValve MaterialAll parts steel. All operating parts hardened steel
Maximum Operating Pressure5000 psiResponse Time30-60 ms
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Seal MaterialNitrileActuation TypeElectrical
Flow Rate42 L/minCoil Nut Tightening Torque4.1 Nm
Maximum Inlet Pressure Rating5000 PSI, 350 BARFlow Rate11 GAL/MIN, 42 L/MIN
Actuation TypeElectricalConfigurationClosed Center
Seal TypeNitrile
