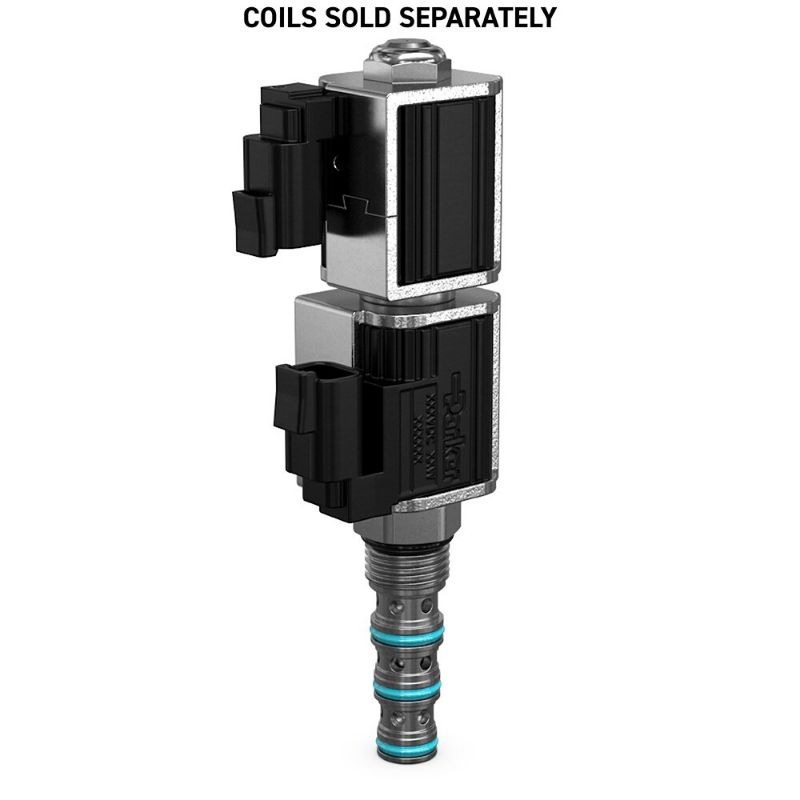

Parker DSL105C1N - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL105C1N

$153.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Tank Pressure	N/A psi
Maximum Inlet Pressure Rating	250 bar	Function	4-way
Configuration	Closed Center	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	N/A	Maximum Operating Temperature	+121 °C
Coil Type	5/8" Super Coil	Cavity Size	C10-4
Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Operating Temperature	-34 to +121 °C	Division	Hydraulic Systems Division
Body Material	N/A	Maximum Flow Rate	7 Gal/min
Installation Torque	37-41 lb-ft	Minimum Operating Temperature	-30 °F
Flow Rate	7 Gal/min	Coil Nut Tightening Torque	7-10 Nm
Actuation Type	Electrical	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.64 lb
Response Time	40-150 ms	Maximum Operating Pressure	3600 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Actuation Type	Electrical	Configuration	Closed Center
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Seal Type	Nitrile
Flow Rate	7 GAL/MIN, 26 L/MIN
