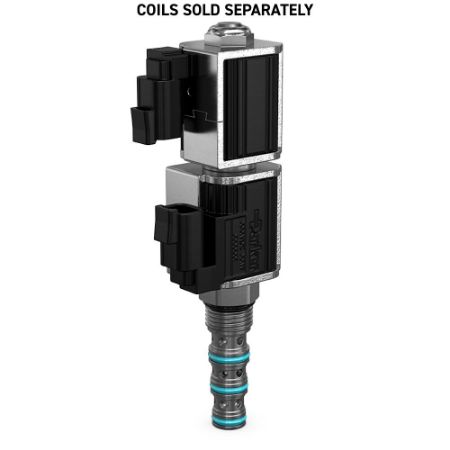

4 Way 3 Position Spool Type Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 4-way, 3-position spool-type solenoid valves feature a robust design that ensures reliable and repeatable performance with minimized pressure drop. These valves can operate with hydraulic system flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi) with open, closed, float, and tandem center configurations available. Parker’s 4-way, 3-position spool-type solenoid valves also have manual override options and are perfect for double acting cylinders, pilot circuits, and bi-directional motor applications while utilizing an easy to configure and use double-solenoid stack. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• High pressure capability
• Manual override options
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Bi-directional motors
• Pilot circuits
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• High pressure capability
• Manual override options
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Bi-directional motors
• Pilot circuits
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Body Material | Division | Flow Rate | Maximum Flow Rate | Maximum Kinematic Viscosity | Minimum Operating Temperature | Maximum Operating Pressure | Maximum Inlet Pressure Rating | Coil Nut Tightening Torque | Weight | Cavity Size | Function | Maximum Operating Temperature | Actuation Type | For Fluid Type | Operation Type | Valve Material | Operating Temperature | Filter Efficiency Rating | Configuration | Mounting Type | Input Voltage | Coil Type | Response Time | Leak Rate | Installation Torque | Override Functionality | Maximum Tank Pressure | Flow Rate | Maximum Inlet Pressure Rating | Actuation Type | Configuration | Seal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSH12557DNN | Quote Required | $353.75/each | EA | Nitrile | n/a | Hydraulic Systems Division | 15 Gal/min | 15 Gal/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 350 bar | 5000 psi | 4.1 Nm | 1 lb | C12-4L | 4-Way | +121 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Tandem Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 74 Nm | Push/Pull - Center Detent | 3000 psi | 15 GAL/MIN, 57 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Tandem Center | Nitrile | ||
| DSL105C1 | Quote Required | 16 In Stock | $138.50/each | EA | D-Ring (Standard) | n/a | Hydraulic Systems Division | 26 L/min | 7 Gal/min | 45-2000 SSU (6 to 420 cSt) | -37 °C | 3600 psi | 250 bar | 7-10 Nm | 0.64 lb | C10-4 | 4-Way | +200 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -35 to +200 °F | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | n/a | N/A psi | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Closed Center | D-Ring (Standard) | |
| DSL105C1MV | Quote Required | $257.75/each | EA | Fluorocarbon | n/a | Hydraulic Systems Division | 7 Gal/min | 7 Gal/min | 45-2000 SSU (6 to 420 cSt) | -26 °C | 3600 psi | 250 bar | 5-7 lb-ft | 0.64 lb | C10-4 | 4-Way | +204 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 50-56 Nm | Push/Pull | N/A psi | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical, Manual | Closed Center | Fluorocarbon | ||
| DSL105C1N | Quote Required | $153.50/each | EA | Nitrile | n/a | Hydraulic Systems Division | 7 Gal/min | 7 Gal/min | 45-2000 SSU (6 to 420 cSt) | -30 °F | 3600 psi | 250 bar | 7-10 Nm | 0.64 lb | C10-4 | 4-Way | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | n/a | N/A psi | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Closed Center | Nitrile | ||
| DSL105C4 | 1 Limited Stock | 10 In Stock | $138.50/each | EA | D-Ring (Standard) | n/a | Hydraulic Systems Division | 7 Gal/min | 7 Gal/min | 45-2000 SSU (6 to 420 cSt) | -35 °F | 3600 psi | 250 bar | 7-10 Nm | 0.64 lb | C10-4 | 4-Way | +200 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -37 to +93 °C | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | n/a | N/A psi | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Floating Center | D-Ring (Standard) | |
| DSL105C4N | Quote Required | $153.50/each | EA | Nitrile | n/a | Hydraulic Systems Division | 7 Gal/min | 7 Gal/min | 45-2000 SSU (6 to 420 cSt) | -30 °F | 3600 psi | 250 bar | 5-7 lb-ft | 0.29 kg | C10-4 | 4-Way | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | n/a | N/A psi | 7 GAL/MIN, 26 L/MIN | 3600 PSI, 250 BAR | Electrical | Floating Center | Nitrile | ||
| DSL105C9 | Quote Required | $153.00/each | EA | D-Ring (Standard) | n/a | Hydraulic Systems Division | 19 L/min | 5 Gal/min | 45-2000 SSU (6 to 420 cSt) | -35 °F | 250 bar | 250 bar | 7-10 Nm | 0.29 kg | C10-4 | 4-Way | +93 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -35 to +200 °F | ISO 4406 18/16/13, SAE Class 4 | Tandem Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | n/a | N/A psi | 5 GAL/MIN, 19 L/MIN | 3600 PSI, 250 BAR | Electrical | Tandem Center | D-Ring (Standard) | ||
| DSL105C9M | Quote Required | $265.50/each | EA | D-Ring (Standard) | n/a | Hydraulic Systems Division | 19 L/min | 5 Gal/min | 45-2000 SSU (6 to 420 cSt) | -37 °C | 3600 psi | 3600 psi | 5-7 lb-ft | 0.64 lb | C10-4 | 4-Way | +200 °F | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -37 to +93 °C | ISO 4406 18/16/13, SAE Class 4 | Tandem Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 40-150 ms | 160 @ 3600 PSI (250 BAR) cm3/min | 37-41 lb-ft | Push/Pull | N/A psi | 5 GAL/MIN, 19 L/MIN | 3600 PSI, 250 BAR | Electrical, Manual | Tandem Center | D-Ring (Standard) | ||
| GS025100N | Quote Required | 1 Limited Stock | $134.25/each | EA | Nitrile | n/a | Hydraulic Systems Division | 17 L/min | 4.5 Gal/min | 45-2000 SSU (6 to 420 cSt) | -30 °F | 350 bar | 5000 psi | 3 lb-ft | 0.4 lb | C08-4 | 4-Way | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 1/2" Super Coil | 50 ms | 250 @ 5000 PSI (350 BAR) cm3/min | 30 Nm | n/a | 210 bar | 4.5 GAL/MIN, 17 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Nitrile | |
| GS025300N | Quote Required | 14 In Stock | $136.00/each | EA | Nitrile | n/a | Hydraulic Systems Division | 15 L/min | 15 L/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 350 bar | 5000 psi | 3 lb-ft | 0.4 lb | C08-4 | 4-Way | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 1/2" Super Coil | 50 ms | 250 @ 5000 PSI (350 BAR) cm3/min | 30 Nm | n/a | 210 bar | 4 GAL/MIN, 15 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Nitrile | |
| GS025310N | Quote Required | $180.50/each | EA | Nitrile | n/a | Hydraulic Systems Division | 15 L/min | 4 Gal/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 5000 psi | 5000 psi | 4.1 Nm | 0.4 lb | C08-4 | 4-Way | +121 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 1/2" Super Coil | 50 ms | 250 @ 5000 PSI (350 BAR) cm3/min | 30 Nm | Non-Detetented | 210 bar | 4 GAL/MIN, 15 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Floating Center | Nitrile | ||
| GS045200ND | Quote Required | 8 In Stock | $154.75/each | EA | Nitrile | n/a | Hydraulic Systems Division | 42 L/min | 42 L/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 5000 psi | 5000 psi | 4.1 Nm | 0.26 kg | C10-4 | 4-Way | +250 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 25 lb-ft | n/a | 210 bar | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Nitrile | |
| GS045200VD | Quote Required | $178.50/each | EA | Fluorocarbon | n/a | Hydraulic Systems Division | 42 L/min | 42 L/min | 45-2000 SSU (6 to 420 cSt) | -26 °C | 5000 psi | 5000 psi | 3 lb-ft | 0.58 lb | C10-4 | 4-Way | +204 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -26 to +204 °C | ISO 4406 18/16/13, SAE Class 4 | Closed Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 34 Nm | n/a | 210 bar | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Closed Center | Fluorocarbon | ||
| GS045400ND | Quote Required | 1520 In Stock | $159.50/each | EA | Nitrile | n/a | Hydraulic Systems Division | 42 L/min | 42 L/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 350 bar | 5000 psi | 3 lb-ft | 0.26 kg | C10-4 | 4-Way | +250 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 34 Nm | n/a | 210 bar | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Nitrile | |
| GS045400VD | Quote Required | $183.25/each | EA | Fluorocarbon | n/a | Hydraulic Systems Division | 42 L/min | 11 Gal/min | 45-2000 SSU (6 to 420 cSt) | -26 °C | 350 bar | 5000 psi | 3 lb-ft | 0.58 lb | C10-4 | 4-Way | +400 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Floating Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 34 Nm | n/a | 210 bar | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Floating Center | Fluorocarbon | ||
| GS045700ND | Quote Required | 106 In Stock | $164.75/each | EA | Nitrile | n/a | Hydraulic Systems Division | 42 L/min | 42 L/min | 45-2000 SSU (6 to 420 cSt) | -34 °C | 350 bar | 350 bar | 3 lb-ft | 0.58 lb | C10-4 | 4-Way | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Tandem Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 34 Nm | n/a | 3000 psi | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical | Tandem Center | Nitrile | |
| GS045750ND | Quote Required | $209.00/each | EA | Nitrile | n/a | Hydraulic Systems Division | 11 Gal/min | 11 Gal/min | 45-2000 SSU (6 to 420 cSt) | -30 °F | 350 bar | 350 bar | 4.1 Nm | 0.58 lb | C10-4 | 4-Way | +121 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Tandem Center | Screw in cartridge valve | 85% of rated voltage at 72°F (20°C) min | 5/8" Super Coil | 30-60 ms | 160 @ 3000 PSI (210 BAR) cm3/min | 34 Nm | Push/Pull - Center Detent | 210 bar | 11 GAL/MIN, 42 L/MIN | 5000 PSI, 350 BAR | Electrical, Manual | Tandem Center | Nitrile |
