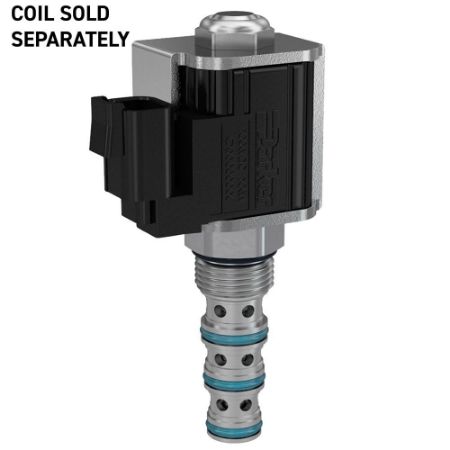

4 Way 2 Position Spool Type Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 4-way, 2-position spool-type solenoid valves feature a tough design that ensures reliable and predictable performance with low pressure drop and minimal hysteresis. These valves can operate with hydraulic system flows as high as 113 lpm (30 gpm) and pressures up to 350 bar (5000 psi) with normally passing, crossing, or closed configurations available. Parker’s 4-way, 2-position spool-type solenoid valves are ideal for reversing or actuation applications; utilizing easily wired and programmed solenoid driven directional controls. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
| Action | Part No. | Availability | Partner Available | Price | Actuation Type | Flow Rate | Coil Nut Tightening Torque | Maximum Operating Pressure | Maximum Kinematic Viscosity | Filter Efficiency Rating | Seal Material | Valve Material | Weight | Response Time | Maximum Inlet Pressure Rating | Function | Flow Direction | For Fluid Type | Configuration | Coil Type | Cavity Size | Override Functionality | Maximum Operating Temperature | Leak Rate | Mounting Type | Maximum Flow Rate | Operation Type | Operating Temperature | Body Material | Input Voltage | Minimum Operating Temperature | Installation Torque | Division | Maximum Inlet Pressure Rating | Seal Material | Actuation Type | Flow Rate | Configuration | Flow Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSH084B | Quote Required | 1 Limited Stock | $119.00/each | Electrical | 4 Gal/min | 5-7 lb-ft | 5000 psi | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.29 lb | 50 ms | 350 bar | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 1/2" Super Coil | C08-4 | N/A | +93 °C | 240 @ 5000 PSI (350 BAR) cm3/min | Screw in cartridge valve | 4 Gal/min | Solenoid operated | -37 to +93 °C | N/A | 85% of rated voltage at 72°F (20°C) min | -37 °C | 32-36 lb-ft | Hydraulic Systems Division | 5000 PSI, 350 BAR | D-Ring (Standard) | Electrical | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSH104B | Quote Required | 32 In Stock | $119.61/each | Electrical | 10 Gal/min | 5-7 lb-ft | 350 bar | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.2 kg | 30-60 ms | 350 bar | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 5/8" Super Coil | C10-4 | N/A | +200 °F | 320 @ 5000 PSI (350 BAR) cm3/min | Screw in cartridge valve | 10 Gal/min | Solenoid operated | -37 to +93 °C | N/A | 85% of rated voltage at 72°F (20°C) min | -35 °F | 69-75 Nm | Hydraulic Systems Division | 5000 PSI, 350 BAR | D-Ring (Standard) | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL084B | Quote Required | 121 In Stock | $88.18/each | Electrical | 4 Gal/min | 5-7 lb-ft | 3600 psi | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.13 kg | 50 ms | 250 bar | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 1/2" Super Coil | C08-4 | N/A | +93 °C | 160 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 4 Gal/min | Solenoid operated | -35 to +200 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -37 °C | 23-27 lb-ft | Hydraulic Systems Division | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL084BT | Quote Required | $119.25/each | Electrical, Manual | 4 Gal/min | 5-7 lb-ft | 3600 psi | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.13 kg | 50 ms | 3600 psi | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 1/2" Super Coil | C08-4 | Push and Twist | +93 °C | 160 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 4 Gal/min | Solenoid operated, Manually operated | -37 to +93 °C | N/A | 85% of rated voltage at 72°F (20°C) min | -35 °F | 23-27 lb-ft | Hydraulic Systems Division | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104B | Quote Required | 125 In Stock | $106.73/each | Electrical | 10 Gal/min | 7-10 Nm | 250 bar | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.2 kg | 30-60 ms | 3600 psi | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 5/8" Super Coil | C10-4 | N/A | +200 °F | 230 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 10 Gal/min | Solenoid operated | -35 to +200 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -35 °F | 50-56 Nm | Hydraulic Systems Division | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL104BN | Quote Required | $91.75/each | Electrical | 38 L/min | 7-10 Nm | 3600 psi | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | Nitrile | All parts steel. All operating parts hardened steel | 0.2 kg | 30-60 ms | 3600 psi | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 5/8" Super Coil | C10-4 | N/A | +250 °F | 230 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 10 Gal/min | Solenoid operated | -30 to +250 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -34 °C | 50-56 Nm | Hydraulic Systems Division | 3600 PSI, 250 BAR | Nitrile | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104BT | Quote Required | $130.25/each | Electrical, Manual | 10 Gal/min | 5-7 lb-ft | 3600 psi | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | D-Ring (Standard) | All parts steel. All operating parts hardened steel | 0.2 kg | 30-60 ms | 250 bar | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 5/8" Super Coil | C10-4 | Push and Twist | +93 °C | 230 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 10 Gal/min | Solenoid operated, Manually operated | -35 to +200 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -35 °F | 37-41 lb-ft | Hydraulic Systems Division | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical, Manual | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104BV | Quote Required | $91.75/each | Electrical | 38 L/min | 5-7 lb-ft | 250 bar | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | Fluorocarbon | All parts steel. All operating parts hardened steel | 0.2 kg | 30-60 ms | 250 bar | 4-way | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Mineral-based or synthetic hydraulic fluids | N/A | 5/8" Super Coil | C10-4 | N/A | +400 °F | 230 @ 3600 PSI (250 BAR) cm3/min | Screw in cartridge valve | 38 L/min | Solenoid operated | -15 to +400 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -26 °C | 50-56 Nm | Hydraulic Systems Division | 3600 PSI, 250 BAR | Fluorocarbon | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| GS024220N | Quote Required | $205.25/each | Electrical, Manual | 5 Gal/min | 3 lb-ft | 350 bar | 45-2000 SSU (6 to 420 cSt) | ISO 4406 18/16/13, SAE Class 4 | Nitrile | All parts steel. All operating parts hardened steel | 0.3 kg | 50 ms | 350 bar | 4-way | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | Mineral-based or synthetic hydraulic fluids | Reversing Spool | 1/2" Super Coil | C08-4 | Detented | +250 °F | 150 @ 5000 PSI (350 BAR) cm3/min | Screw in cartridge valve | 5 Gal/min | Solenoid operated, Manually operated | -30 to +250 °F | N/A | 85% of rated voltage at 72°F (20°C) min | -30 °F | 30 Nm | Hydraulic Systems Division | 5000 PSI, 350 BAR | Nitrile | Electrical, Manual | 5 GAL/MIN, 19 L/MIN | Reversing Spool | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized |
