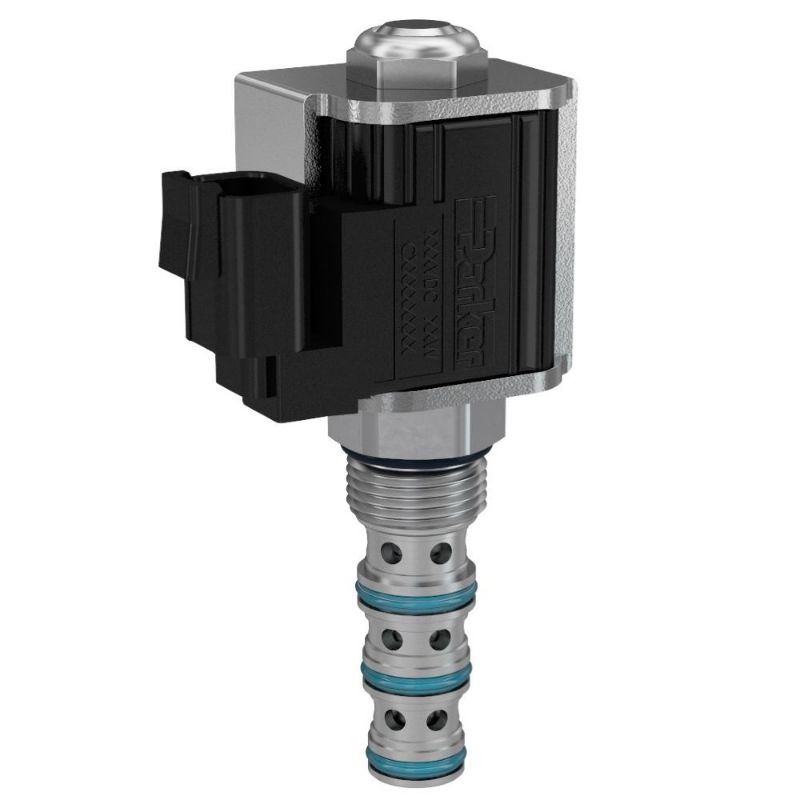

Parker DSL104B - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

AFP Availability:	Quote Required
Partner Available:	152 In Stock

Brand Parker

Part No. DSL104B

$102.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	4-way
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Maximum Inlet Pressure Rating	3600 psi
Configuration	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil	Cavity Size	C10-4
Maximum Operating Temperature	+200 °F	Override Functionality	N/A
Leak Rate	230 @ 3600 PSI (250 BAR) cm3/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Operation Type	Solenoid operated	Maximum Flow Rate	10 Gal/min
Operating Temperature	-35 to +200 °F	Division	Hydraulic Systems Division
Body Material	N/A	Mounting Type	Screw in cartridge valve
Minimum Operating Temperature	-35 °F	Flow Rate	10 Gal/min
Installation Torque	50-56 Nm	Actuation Type	Electrical
Coil Nut Tightening Torque	7-10 Nm	Maximum Operating Pressure	250 bar
Seal Material	D-Ring (Standard)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Valve Material	All parts steel. All operating parts hardened steel	Response Time	30-60 ms
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.2 kg
Seal Material	D-Ring (Standard)	Flow Rate	10 GAL/MIN, 38 L/MIN
Actuation Type	Electrical	Configuration	N/A
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
