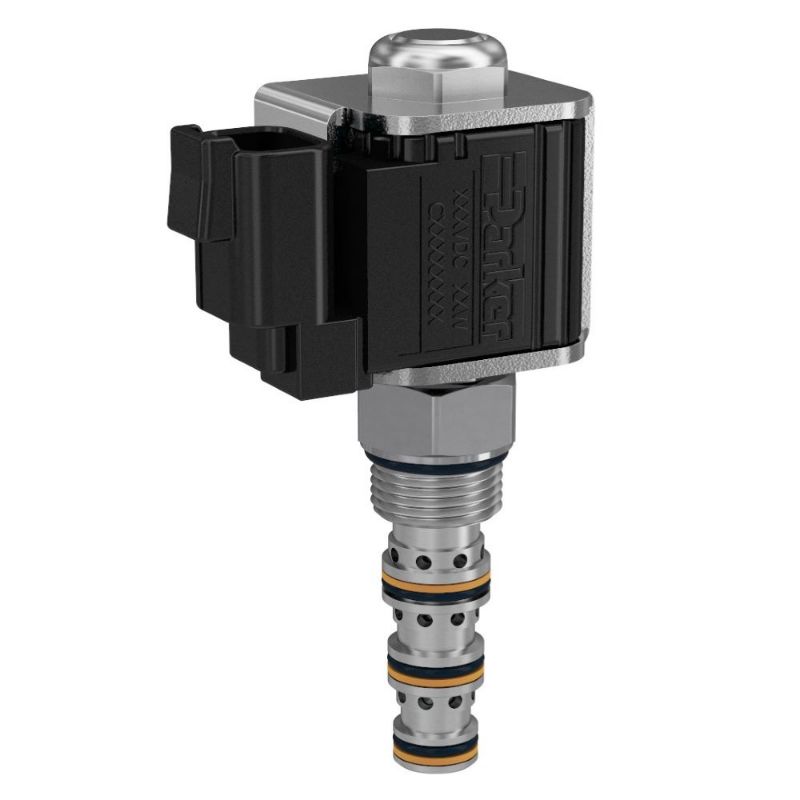

Parker GS024220N - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS024220N

$205.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Leak Rate	150 @ 5000 PSI (350 BAR) cm3/min
Body Material	N/A	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	1/2" Super Coil
Maximum Operating Temperature	+250 °F	Flow Rate	5 Gal/min
Installation Torque	30 Nm	Operation Type	Solenoid operated, Manually operated
Maximum Flow Rate	5 Gal/min	Division	Hydraulic Systems Division
Minimum Operating Temperature	-30 °F	Operating Temperature	-30 to +250 °F
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.3 kg
Maximum Operating Pressure	350 bar	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Response Time	50 ms	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	350 bar
Actuation Type	Electrical, Manual	Coil Nut Tightening Torque	3 lb-ft
Seal Material	Nitrile	Override Functionality	Detented
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cavity Size	C08-4
Configuration	Reversing Spool	Function	4-way
Seal Material	Nitrile	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical, Manual
Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized	Configuration	Reversing Spool
