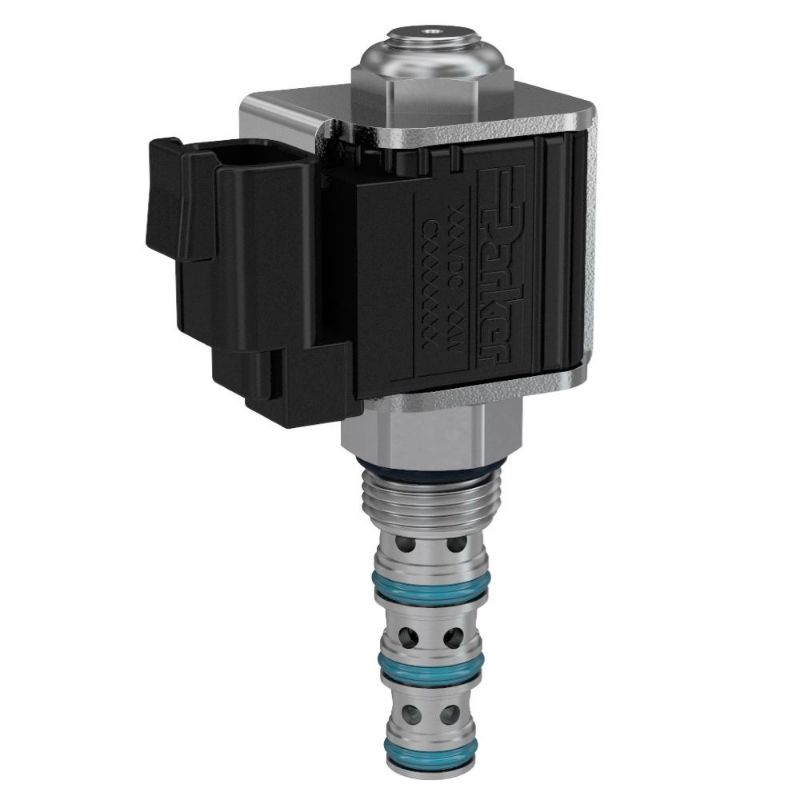

Parker DSL084BT - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL084BT

$119.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Pressure	3600 psi
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Response Time	50 ms
Maximum Inlet Pressure Rating	3600 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	N/A	Function	4-way
Cavity Size	C08-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	Push and Twist	Maximum Operating Temperature	+93 °C
Coil Type	1/2" Super Coil	Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min
Body Material	N/A	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Maximum Flow Rate	4 Gal/min
Operation Type	Solenoid operated, Manually operated	Minimum Operating Temperature	-35 °F
Division	Hydraulic Systems Division	Operating Temperature	-37 to +93 °C
Flow Rate	4 Gal/min	Installation Torque	23-27 lb-ft
Seal Material	D-Ring (Standard)	Coil Nut Tightening Torque	5-7 lb-ft
Actuation Type	Electrical, Manual	Weight	0.13 kg
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	N/A
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
