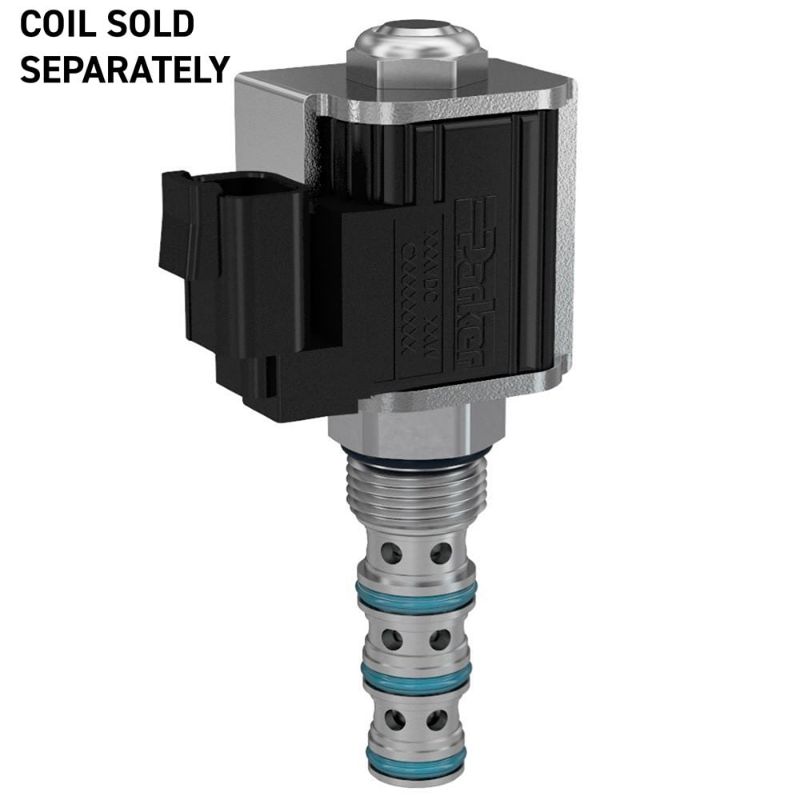

Parker DSH104B - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	30 In Stock

Brand Parker

Part No. DSH104B

$73.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Configuration	n/a	Maximum Operating Temperature	+200 °F
Override Functionality	n/a	Maximum Operating Pressure	350 bar
Weight	0.2 kg	Maximum Inlet Pressure Rating	350 bar
Flow Rate	10 Gal/min	Seal Material	D-Ring (Standard)
Operation Type	Solenoid Operated	Cavity Size	C10-4
Maximum Flow Rate	10 Gal/min	Function	4-Way
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-37 to +93 °C	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	5-7 lb-ft	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Coil Type	5/8" Super Coil	Installation Torque	69-75 Nm
Leak Rate	320 @ 5000 PSI (350 BAR) cm3/min	Response Time	30-60 ms
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
