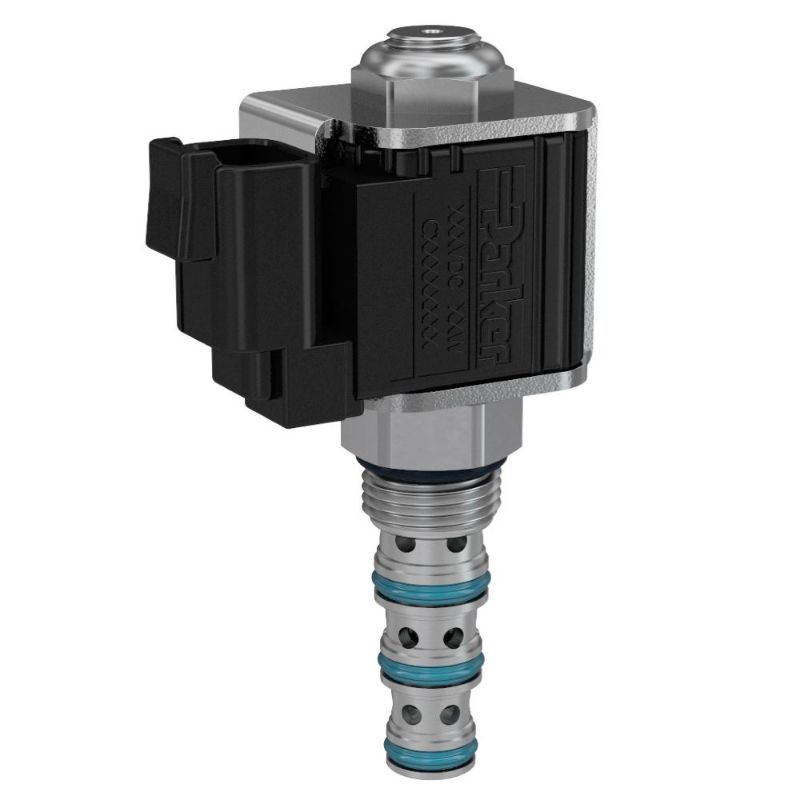

Parker DSH084B - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH084B

$97.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Flow Rate	4 Gal/min	Coil Nut Tightening Torque	5-7 lb-ft
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.29 lb
Response Time	50 ms	Maximum Inlet Pressure Rating	350 bar
Function	4-way	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	N/A
Coil Type	1/2" Super Coil	Cavity Size	C08-4
Override Functionality	N/A	Maximum Operating Temperature	+93 °C
Leak Rate	240 @ 5000 PSI (350 BAR) cm3/min	Mounting Type	Screw in cartridge valve
Maximum Flow Rate	4 Gal/min	Operation Type	Solenoid operated
Operating Temperature	-37 to +93 °C	Body Material	N/A
Input Voltage	85% of rated voltage at 72°F (20°C) min	Minimum Operating Temperature	-37 °C
Installation Torque	32-36 lb-ft	Division	Hydraulic Systems Division
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Flow Rate	4 GAL/MIN, 15 L/MIN
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
