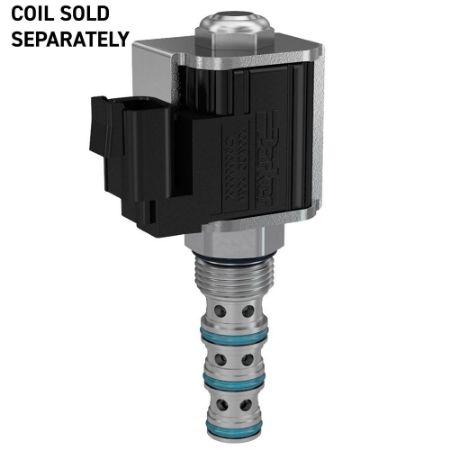

4 Way 2 Position Spool Type Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 4-way, 2-position spool-type solenoid valves feature a tough design that ensures reliable and predictable performance with low pressure drop and minimal hysteresis. These valves can operate with hydraulic system flows as high as 113 lpm (30 gpm) and pressures up to 350 bar (5000 psi) with normally passing, crossing, or closed configurations available. Parker’s 4-way, 2-position spool-type solenoid valves are ideal for reversing or actuation applications; utilizing easily wired and programmed solenoid driven directional controls. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
| Action | Part No. | Availability | Partner Available | Price | UOM | Actuation Type | Body Material | Maximum Operating Pressure | Division | Maximum Kinematic Viscosity | Minimum Operating Temperature | Configuration | Override Functionality | Maximum Inlet Pressure Rating | Flow Rate | Seal Material | Operation Type | Cavity Size | Function | Weight | For Fluid Type | Valve Material | Filter Efficiency Rating | Mounting Type | Operating Temperature | Maximum Operating Temperature | Coil Type | Input Voltage | Response Time | Installation Torque | Coil Nut Tightening Torque | Leak Rate | Flow Direction | Maximum Flow Rate | Maximum Inlet Pressure Rating | Seal Material | Actuation Type | Flow Rate | Configuration | Flow Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSH084B | Quote Required | 1 Limited Stock | $97.50/each | EA | Electrical | n/a | 5000 psi | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | n/a | n/a | 350 bar | 4 Gal/min | D-Ring (Standard) | Solenoid Operated | C08-4 | 4-Way | 0.29 lb | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -37 to +93 °C | +93 °C | 1/2" Super Coil | 85% of rated voltage at 72°F (20°C) min | 50 ms | 32-36 lb-ft | 5-7 lb-ft | 240 @ 5000 PSI (350 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 4 Gal/min | 5000 PSI, 350 BAR | D-Ring (Standard) | Electrical | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSH104B | Quote Required | 32 In Stock | $98.00/each | EA | Electrical | n/a | 350 bar | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | n/a | n/a | 350 bar | 10 Gal/min | D-Ring (Standard) | Solenoid Operated | C10-4 | 4-Way | 0.2 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -37 to +93 °C | +200 °F | 5/8" Super Coil | 85% of rated voltage at 72°F (20°C) min | 30-60 ms | 69-75 Nm | 5-7 lb-ft | 320 @ 5000 PSI (350 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 10 Gal/min | 5000 PSI, 350 BAR | D-Ring (Standard) | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL084B | Quote Required | 121 In Stock | $72.25/each | EA | Electrical | n/a | 3600 psi | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | n/a | n/a | 250 bar | 4 Gal/min | D-Ring (Standard) | Solenoid Operated | C08-4 | 4-Way | 0.13 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -35 to +200 °F | +93 °C | 1/2" Super Coil | 85% of rated voltage at 72°F (20°C) min | 50 ms | 23-27 lb-ft | 5-7 lb-ft | 160 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 4 Gal/min | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL084BT | Quote Required | $119.25/each | EA | Electrical, Manual | n/a | 3600 psi | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | n/a | Push and Twist | 3600 psi | 4 Gal/min | D-Ring (Standard) | Solenoid operated, Manually operated | C08-4 | 4-Way | 0.13 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -37 to +93 °C | +93 °C | 1/2" Super Coil | 85% of rated voltage at 72°F (20°C) min | 50 ms | 23-27 lb-ft | 5-7 lb-ft | 160 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 4 Gal/min | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104B | Quote Required | 126 In Stock | $84.00/each | EA | Electrical | n/a | 250 bar | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | n/a | n/a | 3600 psi | 10 Gal/min | D-Ring (Standard) | Solenoid Operated | C10-4 | 4-Way | 0.2 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -35 to +200 °F | +200 °F | 5/8" Super Coil | 85% of rated voltage at 72°F (20°C) min | 30-60 ms | 50-56 Nm | 7-10 Nm | 230 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 10 Gal/min | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | |
| DSL104BN | Quote Required | $91.75/each | EA | Electrical | n/a | 3600 psi | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | n/a | n/a | 3600 psi | 38 L/min | Nitrile | Solenoid Operated | C10-4 | 4-Way | 0.2 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -30 to +250 °F | +250 °F | 5/8" Super Coil | 85% of rated voltage at 72°F (20°C) min | 30-60 ms | 50-56 Nm | 7-10 Nm | 230 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 10 Gal/min | 3600 PSI, 250 BAR | Nitrile | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104BT | Quote Required | $130.25/each | EA | Electrical, Manual | n/a | 3600 psi | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | n/a | Push and Twist | 250 bar | 10 Gal/min | D-Ring (Standard) | Solenoid operated, Manually operated | C10-4 | 4-Way | 0.2 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -35 to +200 °F | +93 °C | 5/8" Super Coil | 85% of rated voltage at 72°F (20°C) min | 30-60 ms | 37-41 lb-ft | 5-7 lb-ft | 230 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 10 Gal/min | 3600 PSI, 250 BAR | D-Ring (Standard) | Electrical, Manual | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| DSL104BV | Quote Required | $91.75/each | EA | Electrical | n/a | 250 bar | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -26 °C | n/a | n/a | 250 bar | 38 L/min | Fluorocarbon | Solenoid Operated | C10-4 | 4-Way | 0.2 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -15 to +400 °F | +400 °F | 5/8" Super Coil | 85% of rated voltage at 72°F (20°C) min | 30-60 ms | 50-56 Nm | 5-7 lb-ft | 230 @ 3600 PSI (250 BAR) cm3/min | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 38 L/min | 3600 PSI, 250 BAR | Fluorocarbon | Electrical | 10 GAL/MIN, 38 L/MIN | N/A | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | ||
| GS024220N | Quote Required | $205.25/each | EA | Electrical, Manual | n/a | 350 bar | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 °F | Reversing Spool | Detented | 350 bar | 5 Gal/min | Nitrile | Solenoid operated, Manually operated | C08-4 | 4-Way | 0.3 kg | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | -30 to +250 °F | +250 °F | 1/2" Super Coil | 85% of rated voltage at 72°F (20°C) min | 50 ms | 30 Nm | 3 lb-ft | 150 @ 5000 PSI (350 BAR) cm3/min | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | 5 Gal/min | 5000 PSI, 350 BAR | Nitrile | Electrical, Manual | 5 GAL/MIN, 19 L/MIN | Reversing Spool | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized |
