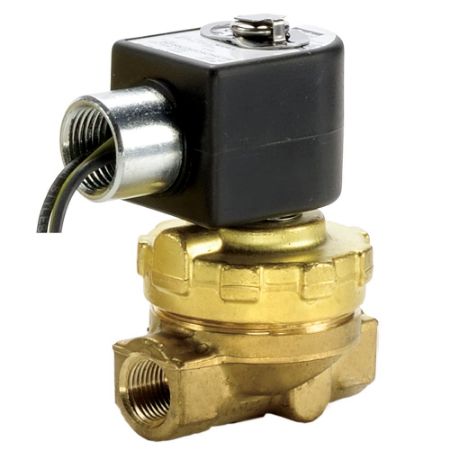

25 & S5 Series - Water, Hot Water, & Steam Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Gold Ring(TM) brand water & steam solenoid valves represent the “gold standard” in diverse industrial and commercial applications. A full-ported design and pivoted-edge diaphragm construction deliver high flow rates in a compact footprint with low pressure drop. These steam valves feature an integral stainless steel orifice for long life and durability. FCD has expanded this offering to include Lead-Free Brass (containing less than 0.25% lead), meeting the SDWA, Section 1417(d) requirements for brass.
Read More...| Action | Part No. | Availability | Partner Available | Price | Preventive Maintenance Kit | Installation | Actuation Type | Maximum Pressure Differential | Power Consumption | Port Type | Orifice Size | Seal Material | Division | Valve Type | Function | Port Size | Main Flow Coefficient | Body Material | Input Voltage | Minimum Pressure Differential | Coil Type | Maximum Ambient Temperature | Media | Ingress Protection Rating | Maximum Steam Pressure | Maximum Fluid Temperature | Specifications Met | Media | Function | Coil Type | Port Size | Port Type | Installation | Orifice Size | Body Material | Input Voltage | Seal Material | Actuation Type | Power Consumption | Specifications Met | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Valve Type | Maximum Steam Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08FS5C2432ACH4C05 | Quote Required | $415.21/each | 08FS5C2432ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 1/2 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 1/2 inch | 3.6 Cv | Brass | 110/50 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Water | NEMA 4 | 125 psi | 353 °F | UL | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7320 | 1/2 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 3.6 | NEMA 4,4X | 353 | 08FS5C2432ACHR | 131.0 | - | 1.0 | 2 Way | 125 | ||
| 12FS5C2448ACH4C05 | Quote Required | $474.86/each | 12FS5C2448ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 3/4 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 3/4 inch | 7.4 Cv | Brass | 110/50 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4 | 125 psi | 353 °F | UL | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7320 | 3/4 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 7.4 | NEMA 4,4X | 353 | 12FS5C2448ACHR | 131.0 | - | 1.0 | 2 Way | 125 | ||
| 12FS5CL448ACH4C05 | Quote Required | $495.30/each | 12FS5CL448ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 3/4 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 3/4 inch | 7.4 Cv | Lead-Free Brass | 120/60 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4X | 125 psi | 353 °F | CSA listed General Purpose Valve | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7320 | 3/4 | Lead-Free Brass | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC | 7.4 | NEMA 4,4X | 353.0 | 12FS5CL448ACHR | 131.0 | - | 1.0 | 2 Way | 125.0 | ||
| 16FS5C2464ACH4C05 | Quote Required | 4 In Stock | $590.65/each | 16FS5C2464ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 1.0 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 1.0 inch | 12.2 Cv | Brass | 120/60 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4 | 125 psi | 353 °F | EMC | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1.0 | NPT | IOM 7320 | 1.0 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 12.2 | NEMA 4,4X | 353 | 16FS5C2464ACHR | 131.0 | - | 1.0 | 2 Way | 125 |
