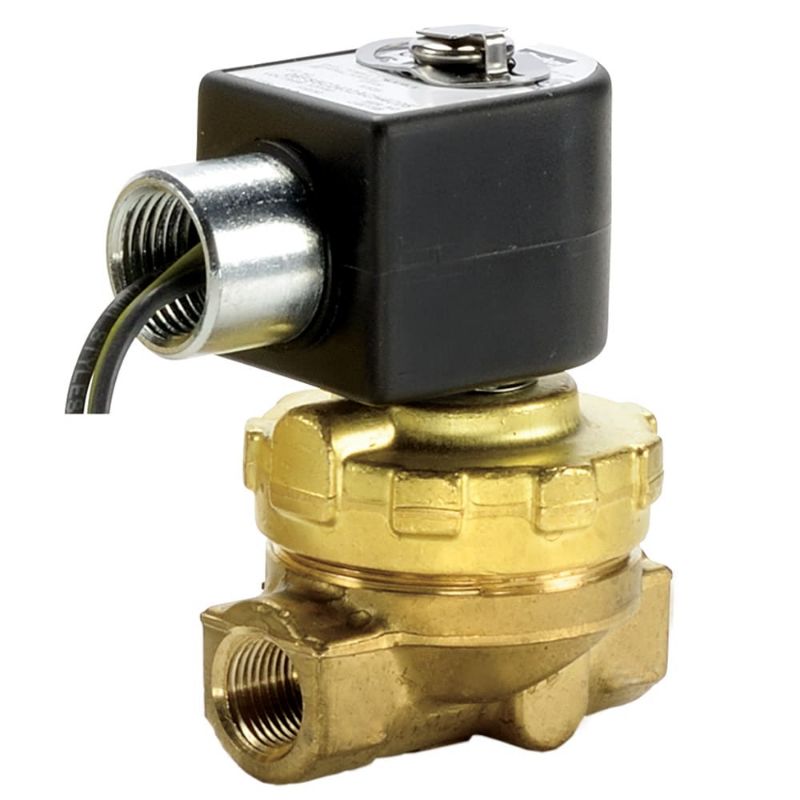

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 08FS5C2432ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 08FS5C2432ACH4C05

$399.80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Water
Function	Normally Closed (NC)	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1/2 inch	Port Type	NPT
Installation	IOM 7320	Orifice Size	1/2 inch
Body Material	Brass	Input Voltage	110/50 VAC
Seal Material	PTFE	Actuation Type	Internal Pilot
Power Consumption	11 W	Specifications Met	UL
Division	Fluid Control Division	Main Flow Coefficient	3.6 Cv
Ingress Protection Rating	NEMA 4	Maximum Fluid Temperature	353 °F
Preventive Maintenance Kit	08FS5C2432ACHR	Maximum Ambient Temperature	131 °F
Maximum Pressure Differential	- psi	Minimum Pressure Differential	1.0 psi
Valve Type	2-Way	Maximum Steam Pressure	125 psi
Media	Water, Hot Water, Steam	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1/2
Port Type	NPT	Installation	IOM 7320
Orifice Size	1/2	Body Material	BRASS
Input Voltage	120/60, 110/50	Seal Material	PTFE
Actuation Type	Internally Piloted	Power Consumption	11.0
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Main Flow Coefficient	3.6
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	353
Preventive Maintenance Kit	08FS5C2432ACHR	Maximum Ambient Temperature	131.0
Maximum Pressure Differential	-	Minimum Pressure Differential	1.0
Valve Type	2 Way	Maximum Steam Pressure	125
