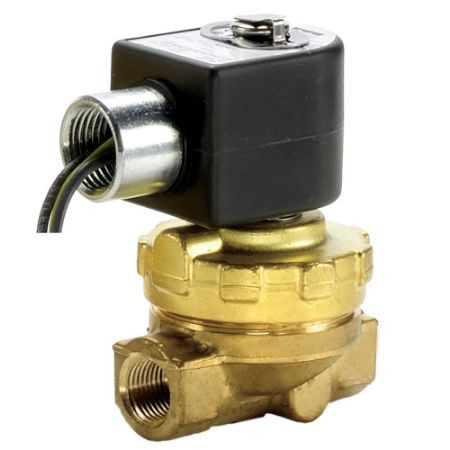

25 & S5 Series - Water, Hot Water, & Steam Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Gold Ring(TM) brand water & steam solenoid valves represent the “gold standard” in diverse industrial and commercial applications. A full-ported design and pivoted-edge diaphragm construction deliver high flow rates in a compact footprint with low pressure drop. These steam valves feature an integral stainless steel orifice for long life and durability. FCD has expanded this offering to include Lead-Free Brass (containing less than 0.25% lead), meeting the SDWA, Section 1417(d) requirements for brass.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Preventive Maintenance Kit | Installation | Actuation Type | Maximum Pressure Differential | Power Consumption | Port Type | Orifice Size | Seal Material | Division | Valve Type | Function | Port Size | Main Flow Coefficient | Body Material | Input Voltage | Minimum Pressure Differential | Coil Type | Maximum Ambient Temperature | Media | Ingress Protection Rating | Maximum Steam Pressure | Maximum Fluid Temperature | Specifications Met | Media | Function | Coil Type | Port Size | Port Type | Installation | Orifice Size | Body Material | Input Voltage | Seal Material | Actuation Type | Power Consumption | Specifications Met | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Valve Type | Maximum Steam Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08FS5C2432ACH4C05 | Quote Required | $415.21/each | EA | 08FS5C2432ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 1/2 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 1/2 inch | 3.6 Cv | Brass | 110/50 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Water | NEMA 4 | 125 psi | 353 °F | UL | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7320 | 1/2 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 3.6 | NEMA 4,4X | 353 | 08FS5C2432ACHR | 131.0 | - | 1.0 | 2 Way | 125 | ||
| 12FS5C2448ACH4C05 | Quote Required | $474.86/each | EA | 12FS5C2448ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 3/4 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 3/4 inch | 7.4 Cv | Brass | 110/50 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4 | 125 psi | 353 °F | UL | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7320 | 3/4 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 7.4 | NEMA 4,4X | 353 | 12FS5C2448ACHR | 131.0 | - | 1.0 | 2 Way | 125 | ||
| 12FS5CL448ACH4C05 | Quote Required | $495.30/each | EA | 12FS5CL448ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 3/4 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 3/4 inch | 7.4 Cv | Lead-Free Brass | 120/60 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4X | 125 psi | 353 °F | CSA listed General Purpose Valve | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7320 | 3/4 | Lead-Free Brass | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC | 7.4 | NEMA 4,4X | 353.0 | 12FS5CL448ACHR | 131.0 | - | 1.0 | 2 Way | 125.0 | ||
| 16FS5C2464ACH4C05 | Quote Required | 4 In Stock | $590.65/each | EA | 16FS5C2464ACHR | IOM 7320 | Internal Pilot | - psi | 11 W | NPT | 1.0 inch | PTFE | Fluid Control Division | 2-Way | Normally Closed (NC) | 1.0 inch | 12.2 Cv | Brass | 120/60 VAC | 1.0 psi | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 131 °F | Hot Water | NEMA 4 | 125 psi | 353 °F | EMC | Water, Hot Water, Steam | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1.0 | NPT | IOM 7320 | 1.0 | BRASS | 120/60, 110/50 | PTFE | Internally Piloted | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 12.2 | NEMA 4,4X | 353 | 16FS5C2464ACHR | 131.0 | - | 1.0 | 2 Way | 125 |
