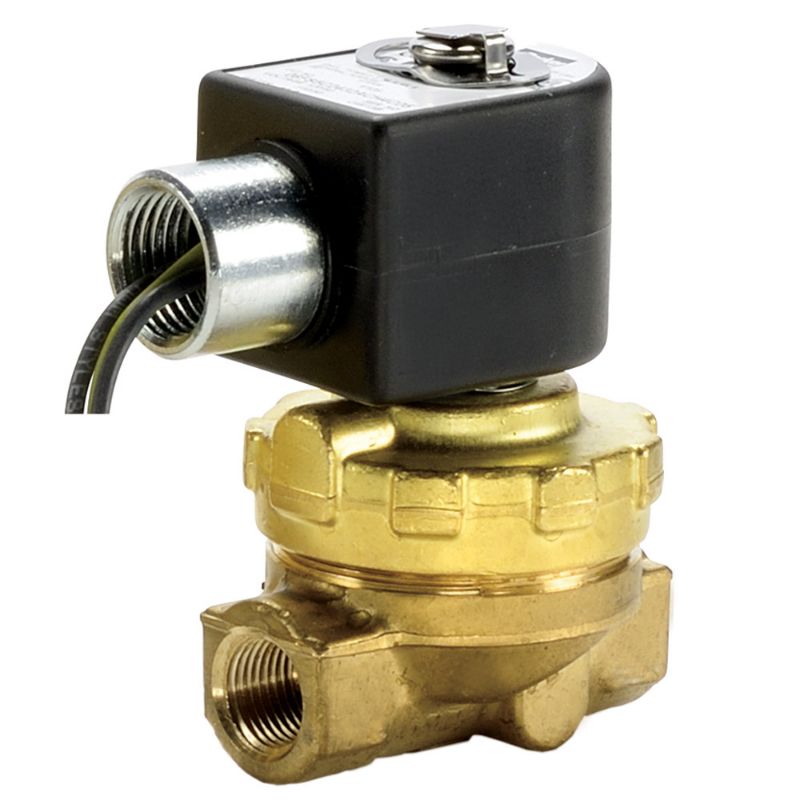

Parker 12FS5C2448ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12FS5C2448ACH4C05

$474.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	3/4 inch
Maximum Ambient Temperature	131 °F	Minimum Pressure Differential	1.0 psi
Ingress Protection Rating	NEMA 4	Media	Hot Water
Body Material	Brass	Main Flow Coefficient	7.4 Cv
Input Voltage	110/50 VAC	Function	Normally Closed (NC)
Valve Type	2-Way	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Division	Fluid Control Division	Actuation Type	Internal Pilot
Installation	IOM 7320	Seal Material	PTFE
Power Consumption	11 W	Preventive Maintenance Kit	12FS5C2448ACHR
Maximum Steam Pressure	125 psi	Orifice Size	3/4 inch
Maximum Fluid Temperature	353 °F	Specifications Met	UL
Port Type	NPT	Maximum Pressure Differential	- psi
Port Type	NPT	Body Material	BRASS
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Function	Normally Closed
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Power Consumption	11.0	Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
Ingress Protection Rating	NEMA 4,4X	Media	Water, Hot Water, Steam
Installation	IOM 7320	Seal Material	PTFE
Maximum Fluid Temperature	353	Maximum Ambient Temperature	131.0
Maximum Pressure Differential	-	Minimum Pressure Differential	1.0
Valve Type	2 Way	Maximum Steam Pressure	125
Port Size	3/4	Orifice Size	3/4
Main Flow Coefficient	7.4	Preventive Maintenance Kit	12FS5C2448ACHR
