*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

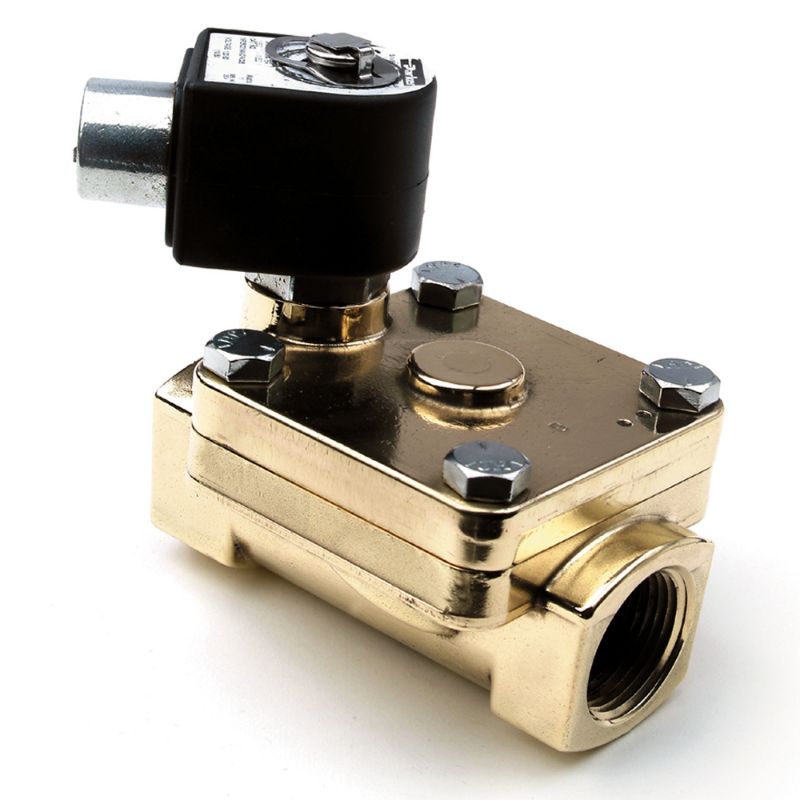

Parker 16FS5C2464ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 16FS5C2464ACH4C05

$536.96

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Function	Normally Closed (NC)	Valve Type	2-Way
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Media	Hot Water
Installation	IOM 7320	Seal Material	PTFE
Actuation Type	Internal Pilot	Power Consumption	11 W
Specifications Met	EMC	Ingress Protection Rating	NEMA 4
Maximum Fluid Temperature	353 °F	Maximum Ambient Temperature	131 °F
Maximum Pressure Differential	- psi	Minimum Pressure Differential	1.0 psi
Maximum Steam Pressure	125 psi	Input Voltage	120/60 VAC
Port Size	1.0 inch	Orifice Size	1.0 inch
Main Flow Coefficient	12.2 Cv	Preventive Maintenance Kit	16FS5C2464ACHR
Port Type	NPT	Body Material	BRASS
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Function	Normally Closed
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Power Consumption	11.0	Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
Ingress Protection Rating	NEMA 4,4X	Media	Water, Hot Water, Steam
Installation	IOM 7320	Seal Material	PTFE
Maximum Fluid Temperature	353	Maximum Ambient Temperature	131.0
Maximum Pressure Differential	-	Minimum Pressure Differential	1.0
Valve Type	2 Way	Maximum Steam Pressure	125
Port Size	1.0	Orifice Size	1.0
Main Flow Coefficient	12.2	Preventive Maintenance Kit	16FS5C2464ACHR

Product resources

Literature and Reference Materials

Tube Seal (PDF)
