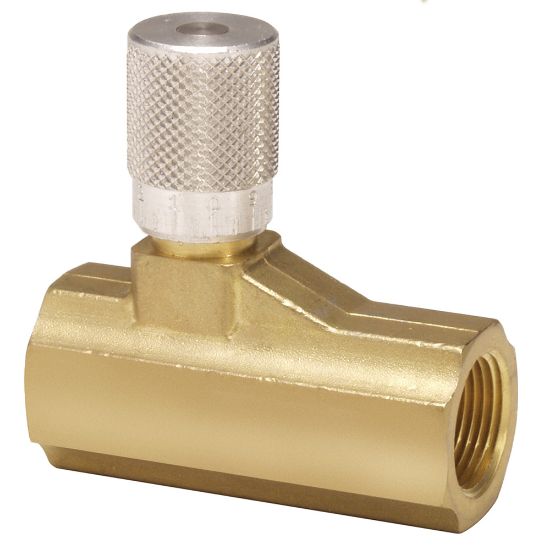

Parker 003381101 - Needle Valve - 338 Series

The 338 series needle valve bi-directionally meters the flow of air through the valve. The perimeter of the adjustment knob features position markings and an internal fine taper needle, providing precise flow control even at low flow rates.

AFP Availability:	Quote Required
Partner Available:	28 In Stock

Brand Parker

Part No. 003381101

$73.71/each

Products specifications

Attribute name	Attribute value
Division	Pneumatic Division	Lubricant	None
Port Connection	NPT	Media	Air
Mounting Type	Inline	Options	Extended Temperature Version
Port Size	1/4	Flow Coefficient	0.28 to 2.62 Cv (metered)
Product Type	Needle Control Valve	Flow Rate	15 to 140 SCFM (metered)
Needle Material	Stainless Steel	Operating Temperature	-18 to 82
Operation Type	Knob with Micrometer Position	Body Material	Brass
Port Type	NPT	Operating Pressure	0 to 250
Seal Material	Urethane	Port Type	NPT
Port Size (inch)	1/4
