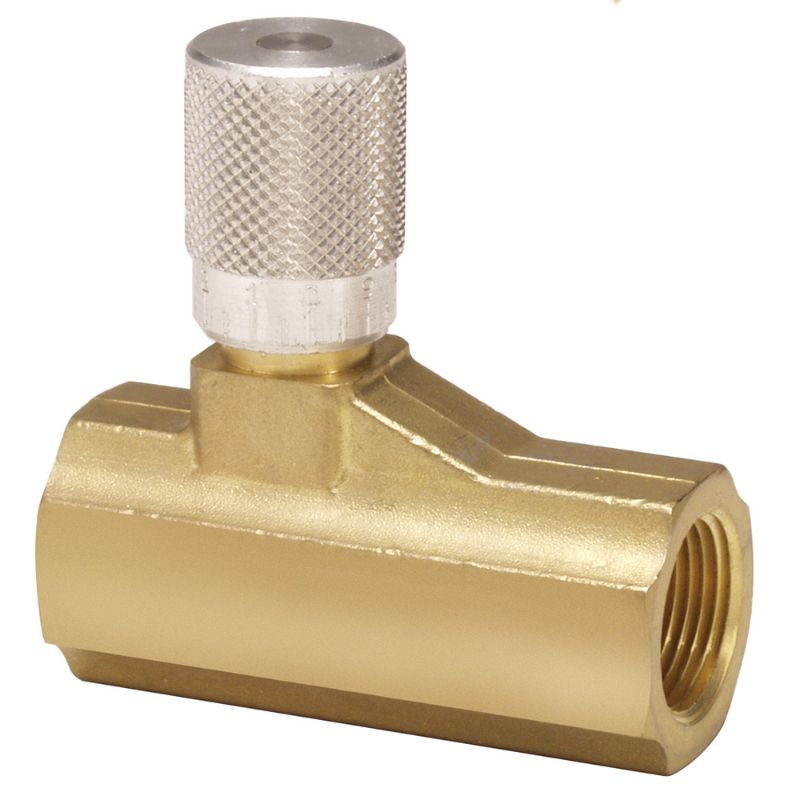

Parker 003381102 - Needle Valve - 338 Series

The 338 series needle valve bi-directionally meters the flow of air through the valve. The perimeter of the adjustment knob features position markings and an internal fine taper needle, providing precise flow control even at low flow rates.

Availability:	Quote Required
Partner Available:	58 In Stock

Brand Parker

Part No. 003381102

$89.59

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	15 to 140 SCFM (metered)
Body Material	Brass	Mounting Type	Inline
Seal Material	Urethane	Operation Type	Knob with Micrometer Position
Division	Pneumatic Division	Operating Temperature	-18 to 82
Media	Air	Options	Extended Temperature Version
Lubricant	None	Port Size	3/8
Port Type	NPT	Product Type	Needle Control Valve
Needle Material	Stainless Steel	Port Connection	NPT
Flow Coefficient	0.28 to 2.62 Cv (metered)	Operating Pressure	0 to 250
Port Type	NPT	Port Size (inch)	3/8
